Descripción del Producto

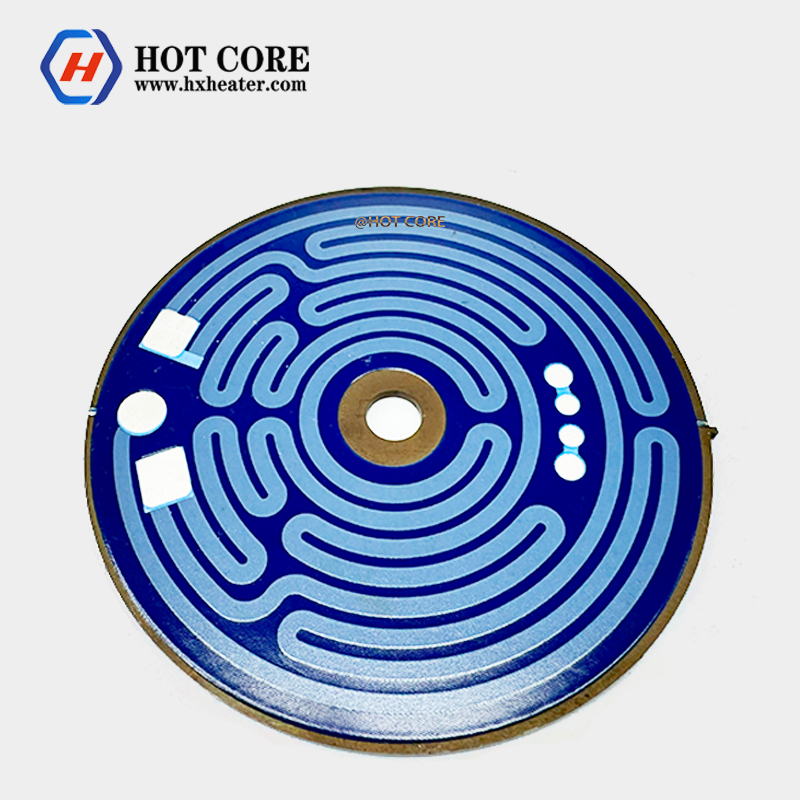

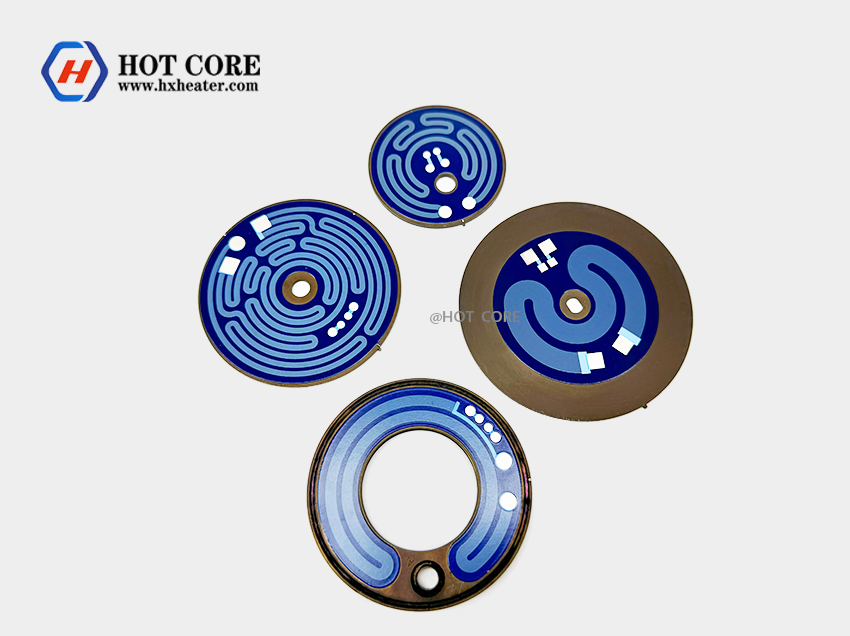

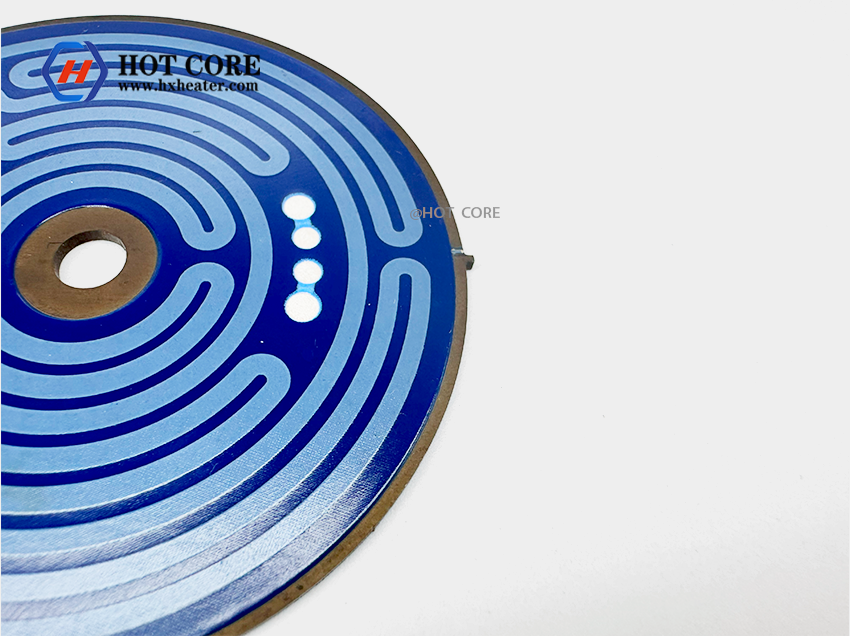

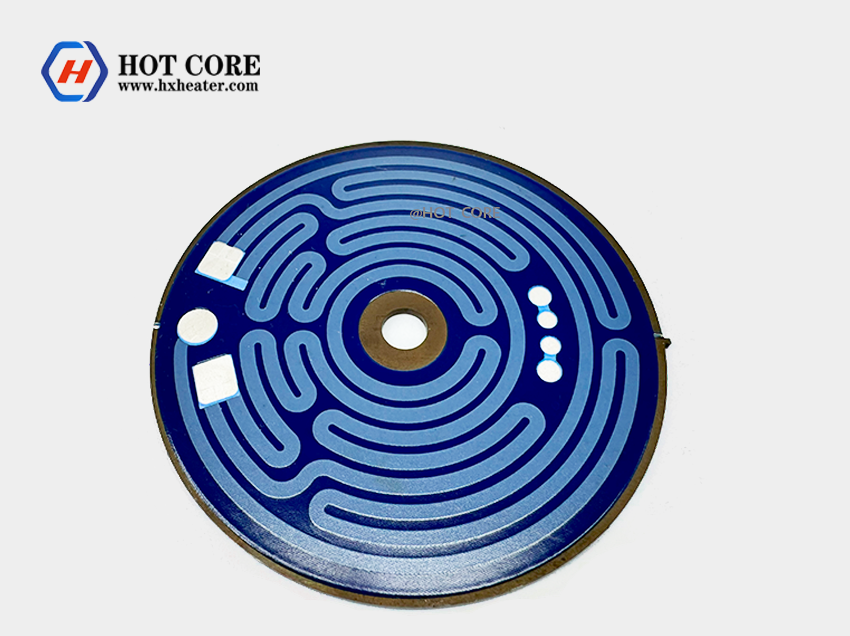

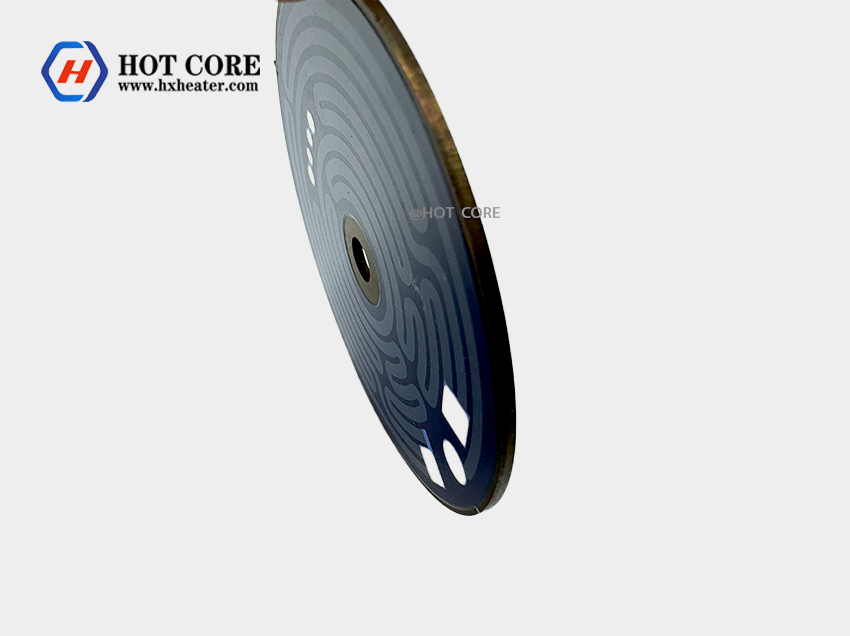

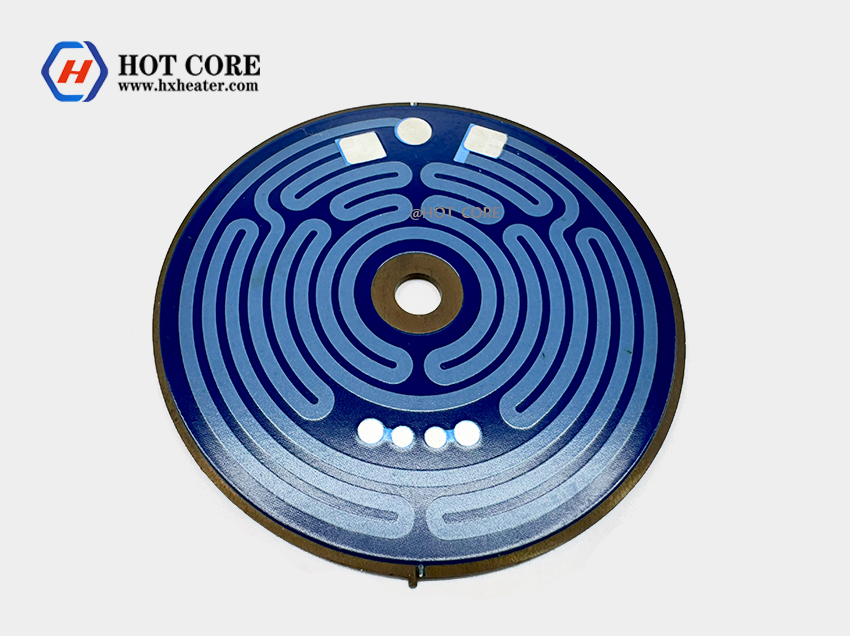

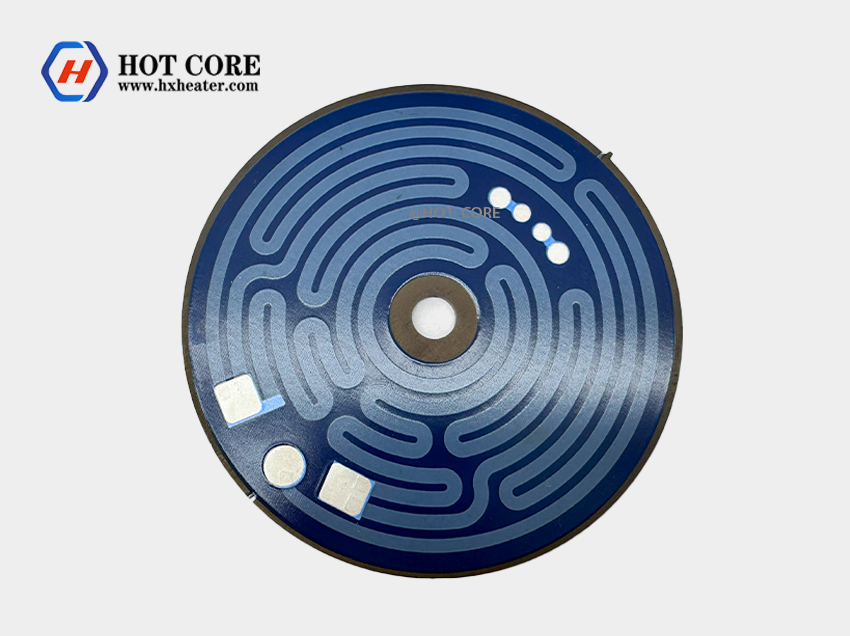

Placa caliente instantánea de película gruesa
If you want to choose the new type Custom Made Water Dispenser Thick Film Instant Heating Spare Parts, you can take our company into consideration. We design it in tubular structure, which allow water flow inside tube. The electric heating circuit is made on surface’s insulation layers, covered by another insulation layer. Electric and water flow are insulated.And you can get larger heating area (Tubular Structure), higher power density (60w/cm2), faster temperature ramp up (150℃/S), longer life span (>10,000horas) and better thermal transfer (≥97%) .
Especificación
Plate Diameter: 144mm o personalizado
Heat Intensity: >60W/cm²
Ramp-Up Rate: 80℃/s
Thermal Efficiency: >96%
Heating Power: 2.2KW or customized
Service Life: >10,000 horas
Voltaje nominal: 220v
Electric Intensity: 1,500V/5mA/60s
Power Deviation: -10% – +5%
Leakage Current: ≤0.25mA
What is Hot Core Heater advanced in?
1. About10 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.

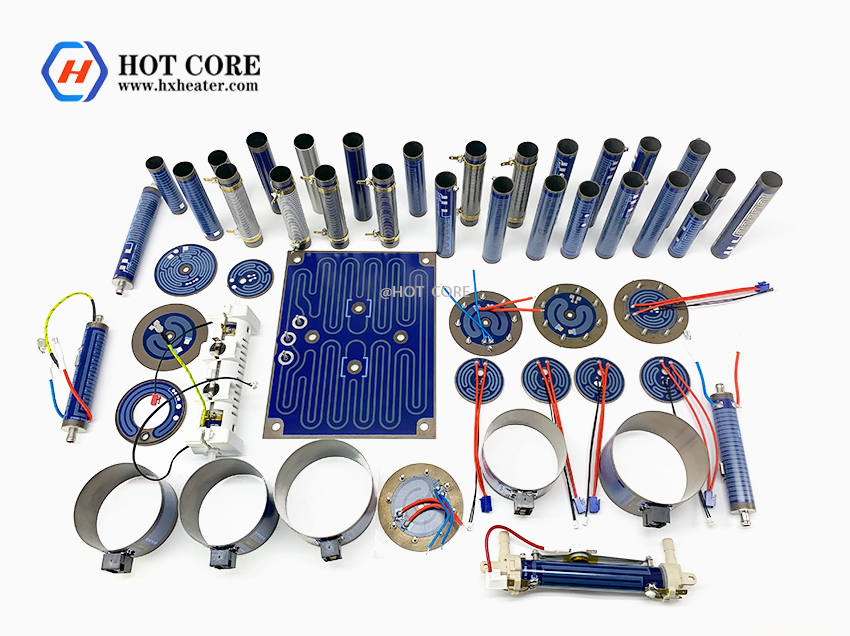

4. The manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 piezas.
