Cabezal de conexión de termopar
Descripción del Producto
| Nombre del producto | Cabezal de conexión de termopar |
| Input Signal | Resistance temperature detector (RTD) and thermocouple (TC) |
| Output Signal | 4-20mamá, overlaid HART protocol |
| Power Supply | Output Signal |
| Load resistance | RL≤(Ue-12)/0.021 |
| Enviroment Temperature | -40 – 80℃ |
| Installation angle | Unlimited |
| Electromagnetic compatibility | Conform to GB/T18268 industrial equipment application requirements (IEC 61326-1) |
Thermocouple connection head uses thermocouples and thermal resistors as temperature measuring elements. The output signal of the temperature measuring element is sent to the transmitter module. After voltage stabilization and filtering, operational amplification, nonlinear correction, V/I conversion, constant current, reverse connection protection and other circuit processing, it is converted into a 4-20mA current signal 0-5V/0-10V voltage signal that is linearly related to temperature, and outputs RS485 digital signal.
A device that converts physical measurement signals or ordinary electrical signals into standard electrical signals for output or can be output through communication protocols. Thermocouple connection head is an instrument that can convert temperature variables into standard output signals, mainly used for the measurement and control of temperature parameters in industrial processes.
The current transmitter converts the AC current of the main circuit being measured into a standard signal of a constant current loop and continuously transmits it to the receiving device. Thermocouple connection head converts the signal of the temperature sensor into a current signal, and connects to the secondary instrument to display the corresponding temperature.

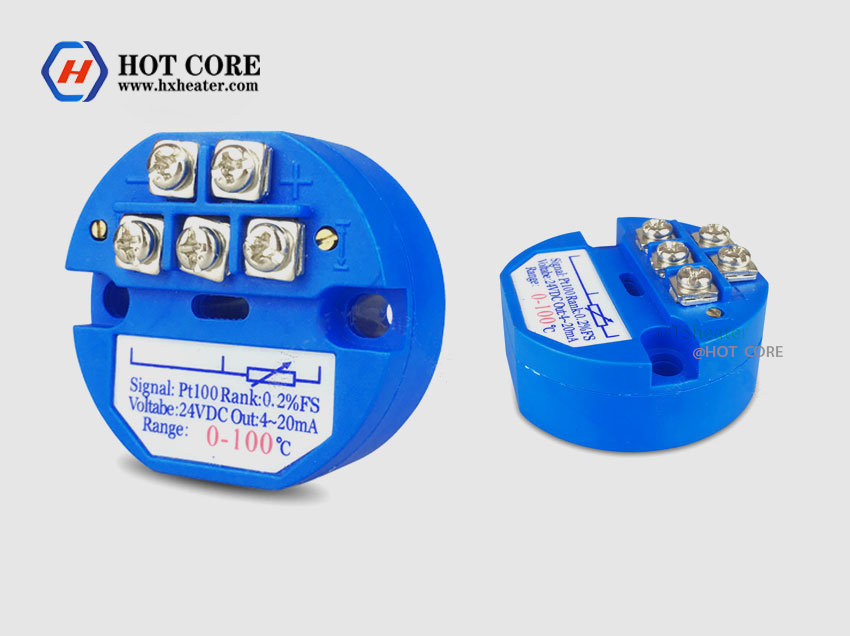

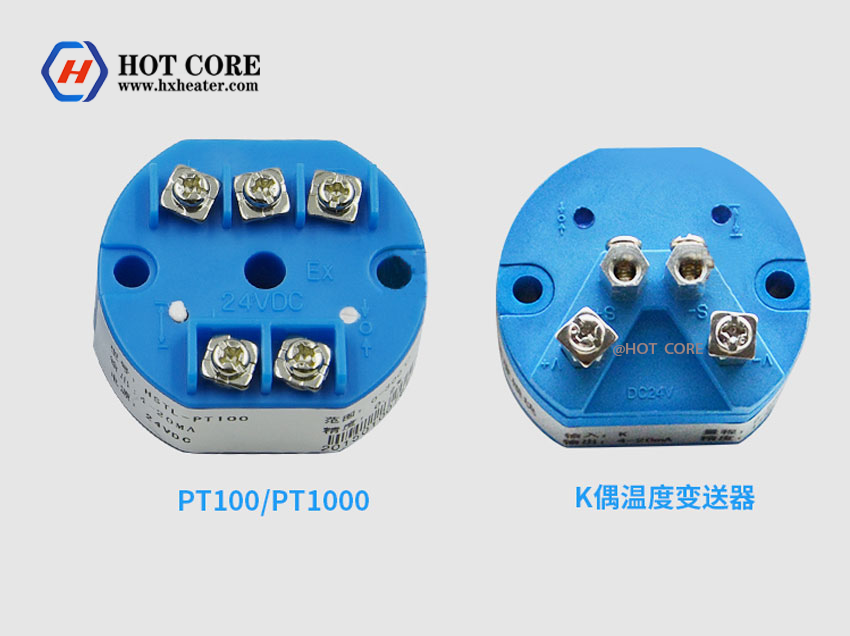

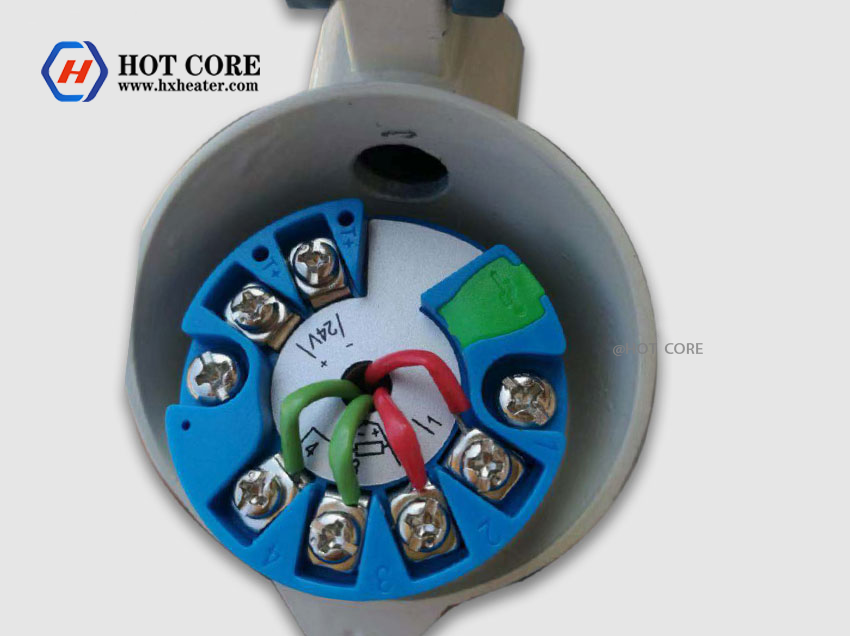

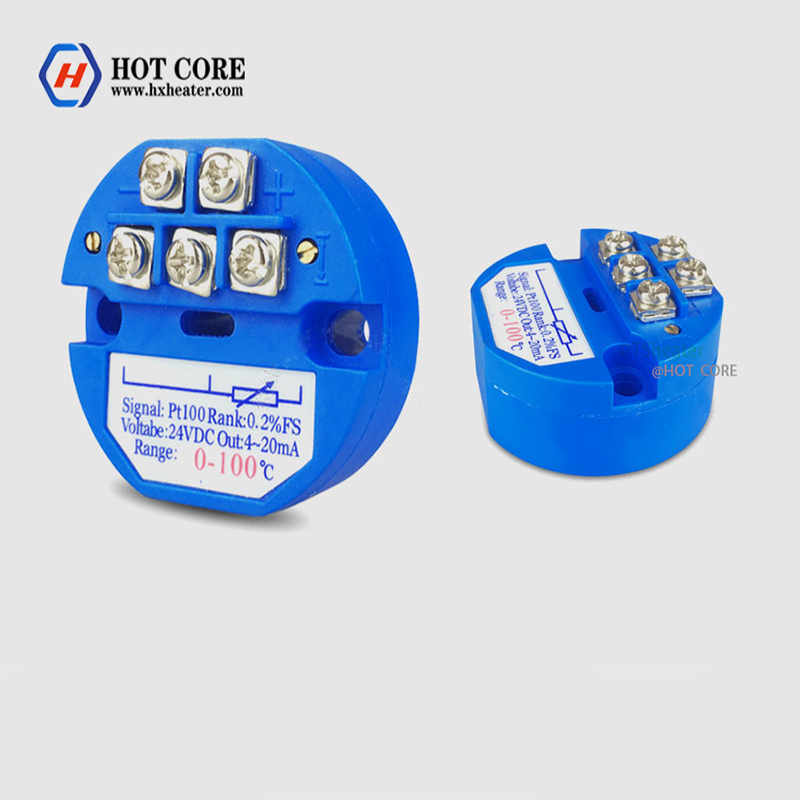

The isolated HART intelligent temperature transmitter (round card) is used for the signal input of resistance temperature detector (RTD) and thermocouple (TC) y 4 – 20mA analog output of the two-wire system, and can be installed in the sensor(Form B) through the HART protocol configuration.
Entrega & Consultas:
La mayoría de los artículos están disponibles para entrega en 3 a 7 dias laborables. Sin embargo, El calentador Ts ofrece servicios de emergencia adicionales para clientes que se encuentran en una situación de avería.. Esto incluye servicios de 48 horas en productos Mica., Calentadores de cartucho y calentadores de nudillos cerámicos. Para todas las consultas, comuníquese con un miembro de nuestro equipo de ventas que estará encantado de ayudarle.
