Sensor de temperatura RTD PT100
Temperature Sensor RTD PT100 Terminals: cabeza de aluminio con tapa roscada y cadena, diferentes tipos de terminales. The end of the element is a nickel-plated brass terminal mounted on a high purity ceramic terminal block.Temperature Sensor RTD PT100
Sensor de temperatura RTD PT100
Se puede utilizar para una variedad de conexiones y diámetros de funda., no – vaina de flexión.
Terminales: cabeza de aluminio con tapa roscada y cadena, diferentes tipos de terminales.
El extremo del elemento es un terminal de latón niquelado montado en un bloque de terminales de cerámica de alta pureza..
Entrada de cable simple/doble y prensaestopas.
Especificación de producto
Sensor de temperatura RTD PT100
Tipo de producto：RTD Pt100 Temperature Sensor
Temperatura：-200 to 1000.C
Material：Stainless steel SS 316
Sheath diameters：3, 5, 6 and 8mm

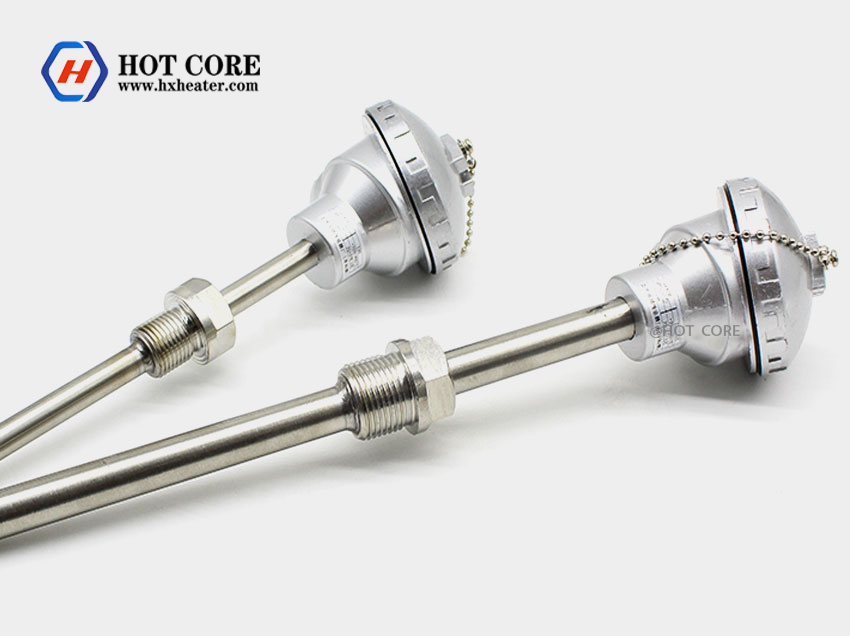

The sensor adopts weatherproof aluminum head to protect the internal structure.Depending on the application, these mineral insulated RTD sensors can be composed of Pt50, Pt100, Pt200, Pt500 or Pt1000.2, 3, 4 single or double wire assembly;In class A or b base material mineral insulation RTDs, the base material mineral insulation RTDs with end has high practical value. Its characteristic is that the mineral insulation sheath can be very long and can be bent or coiled according to the application situation.Available from standard assemblies, free rotating fittings, hexagon joints, circular joints, tender joints, adjustable compression fittings, fixed flange joints or adjustable flange joints.

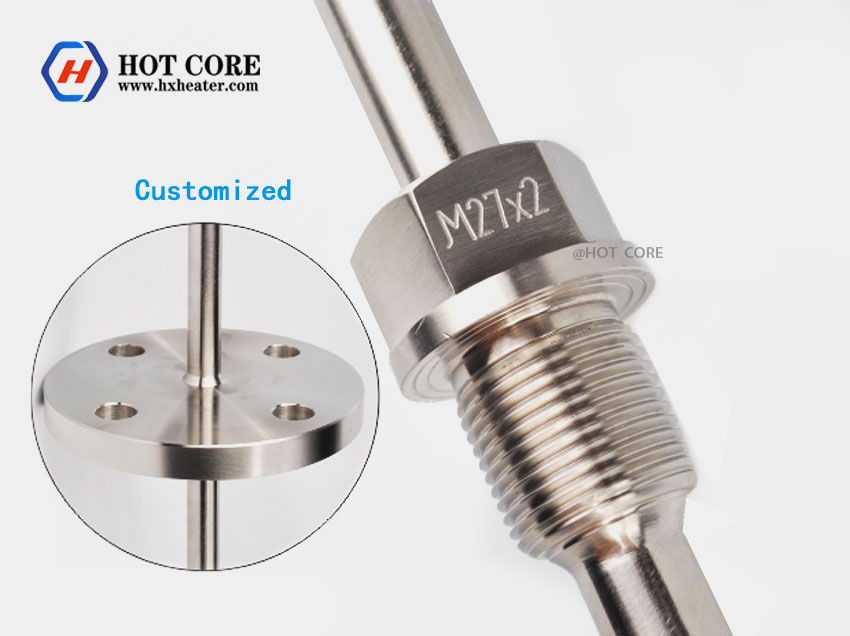

RTD assembly with threaded/flanged connection
Solicitud:
Sensor de temperatura RTD PT100
The assembly is usually installed in an existing hot
casing/protective pipe
The assembly can provide threaded connections and hotsleeves
