Taper Cartridge Heaters

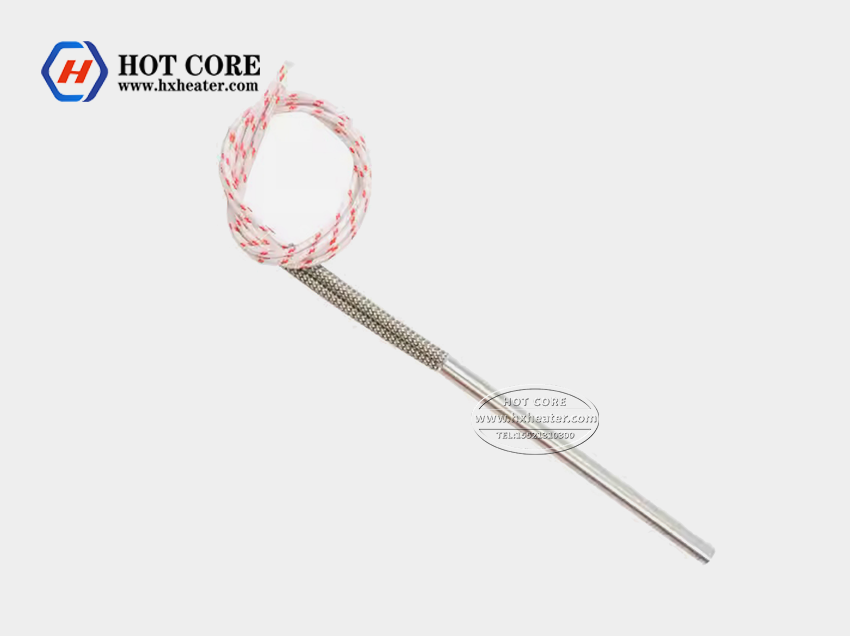

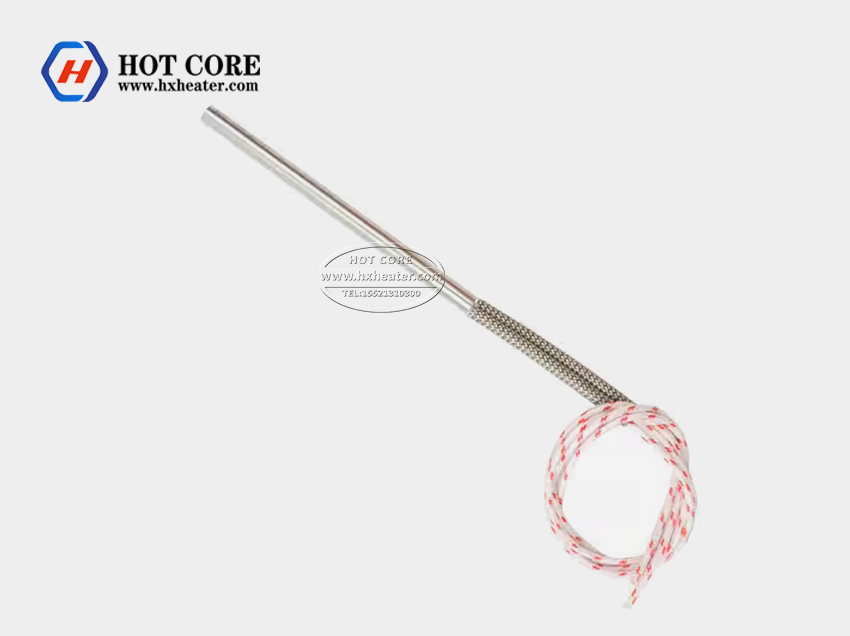

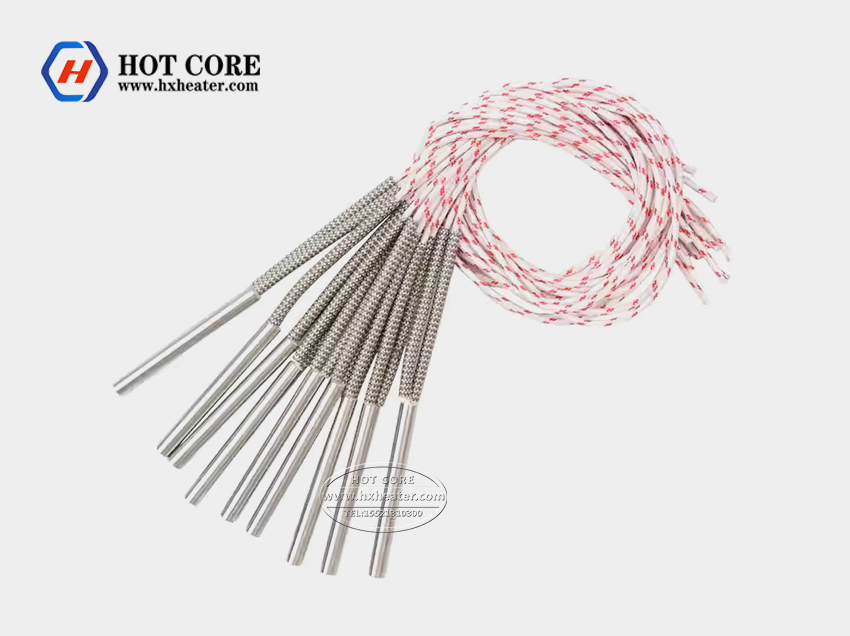

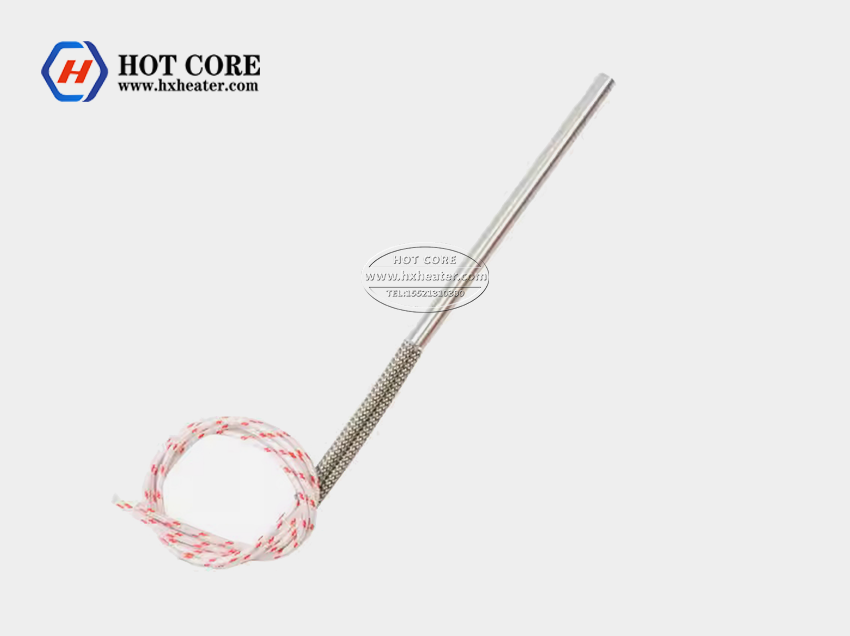

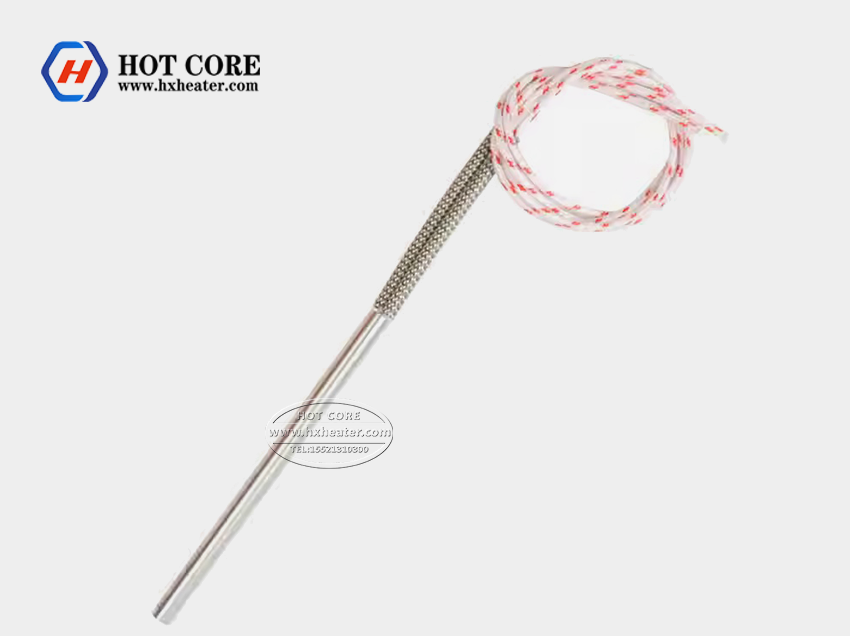

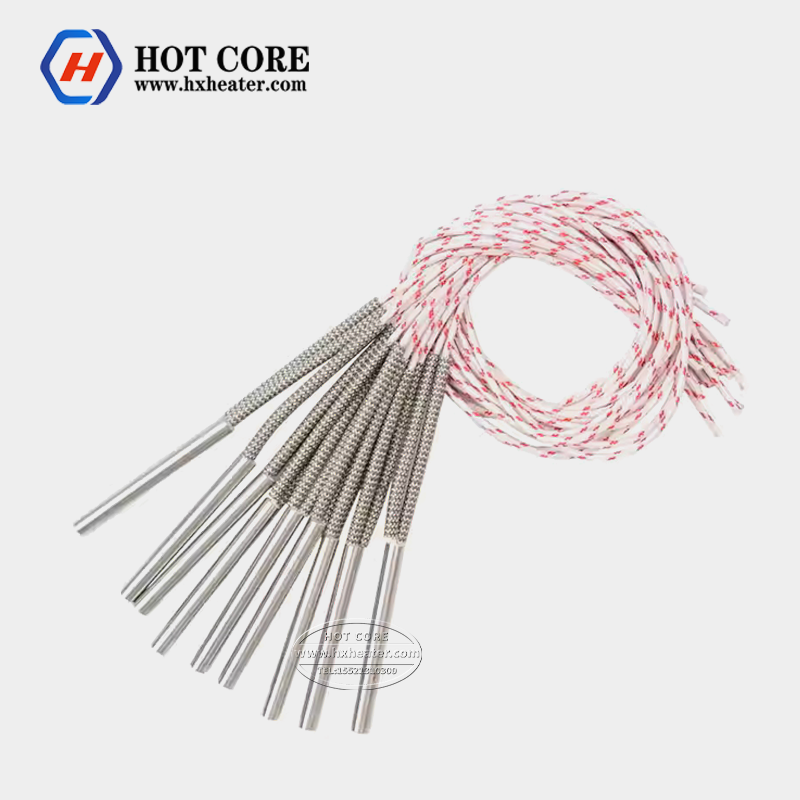

high temperature molding heating rod silicone cartridge heater with thermocouple for injection machine
Cartridge heater are cylindrical electrical heating element.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc.They are also commonly found in the chemical,electronics,equipo medico,packing and nuclar industries.
Our advantage
Technical Data
| Cartridge heater technical parameter | |
| Cartridge heater application | Mould Tools, Tooling, Platens,
Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more. |
| The maximum temperature | 900°C+++ |
| Available with a built in Thermocouple | Type J or K Thermocouple |
| Diámetro (milímetros) | 2.5-33.2milímetros |
| (Non-standard, se puede personalizar) | |
| Tube Material | acero inoxidable 304 321 316l
B. 310S C. INCOLOY 625 ; INCOLOY 800;NCF800 INCOLOY 840 |
| Resistive material | NiCr8020 |
| High voltage stability (temperature) Tensión nominal | ≤24V -500V-DC> 24V 1500V-AC |
| Resistencia de aislamiento (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| Length error | ± 0.5mm |
| Wattage Tolerance | +5% – 10%
(closer tolerances are available upon special request) |
| Input voltage | 12V-440V
(non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |
