Hot core Reducing Machine
Descripción
Parámetros técnicos
There is a difference in the speed of the output shaft of the Reducing Machine, which reduces the speed while sucking the tube. After the machine is reduced, the length of the tube will increase significantly, so some materials can be saved.

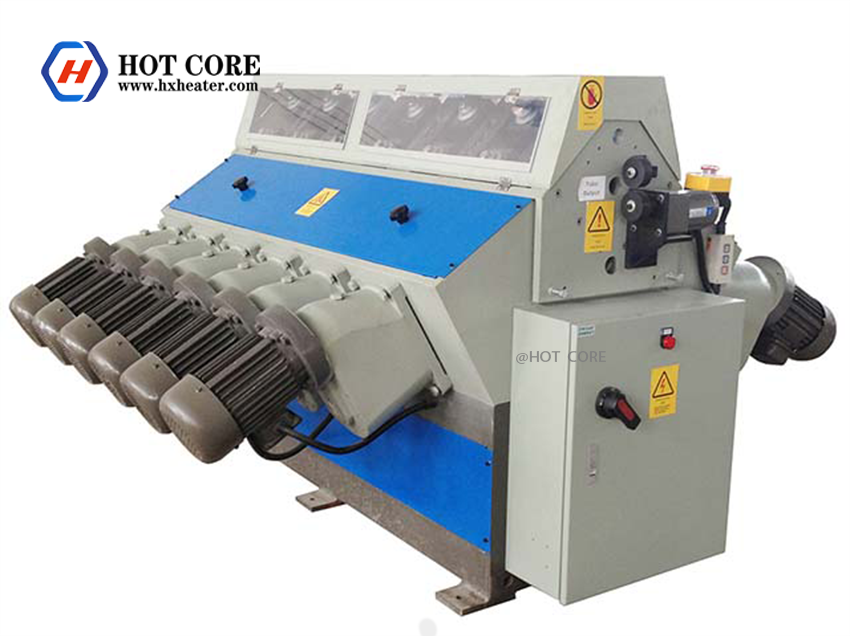

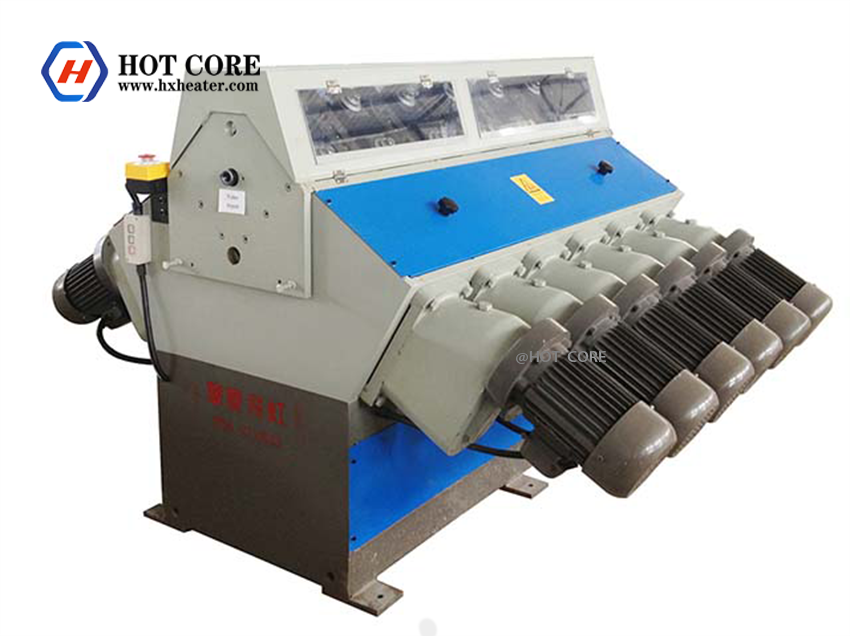

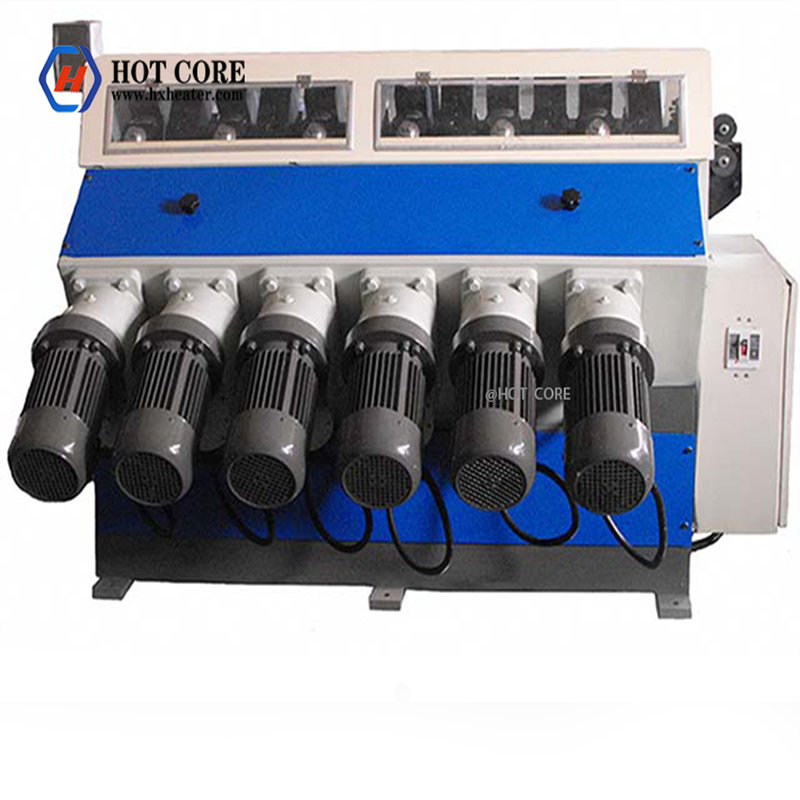

Producto: Máquina reductora

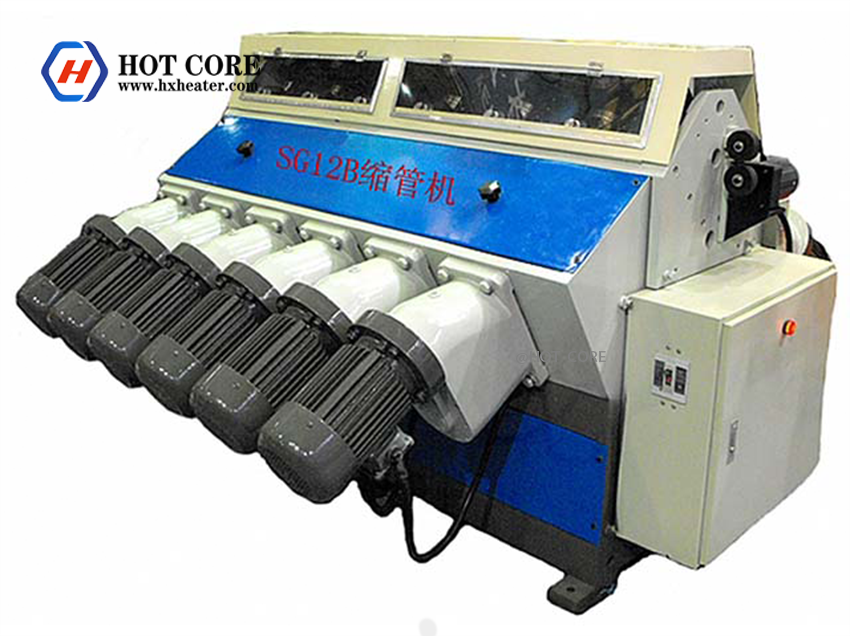

Número: SG12B
The main technical parameters:
The rotation speed of drum: 60 revolutions
Roller dimensions: outer diameter φ98.5mm; inner diameter φ45mm; thickness 38mm
The center distance of the roller: 115 milímetros (adjustable distance down 0.5 milímetros)
A motor power: 1.1kilovatios
Light source power: 380V 50HZ 13.5KW
Volumen: 1900x1200x1700 mm (measured by hand, for reference only)
Functions of Reducing Machine:
Shrink the diameter of the heating tube and increase the density of the heating tube;
Features of Reducing Machine:
Optimal shrinkage reference range (milímetros): Φ4-Φ25mm; the length is recommended to be shorter than 4 metros
(Within the reference range, the service life of the equipment will be longer).
Pipe material: cobre, aluminio, hierro, acero inoxidable, etc.;
The shape of the pipe: redondo, oblate, cuadrado;
Shrinkage speed: uniform speed, non-uniform speed (según los requisitos del cliente).
There are general data can refer to Roll-Reducing Machine
The purpose of Reducing Machine:
Round heating tube, such as a tubular heating tube, box heating tube, cable heating tube;
Oblate heating tube, such as railway heating tube, a heating tube of the fryer
There is a difference in the speed of the output shaft of the Reducing Machine, which reduces the speed while sucking the tube. After the machine is reduced, the length of the tube will increase significantly, so some materials can be saved. The surface of the reduced test tube is smooth, and the roundness is less than 0.05mm (depending on the diameter, material, and length). There are two kinds of materials for the rollers, one is Cr12MOV and the other is cemented carbide. The method of drip lubrication can be selected, and an automatic stamping mechanism can be installed on the machine. With strong power, the machine can reduce heating tubes and complex materials with a diameter of no more than 1 inch (Φ25.4 mm).
