Hot core Mgo Filling Machine
Descripción
Parámetros técnicos
Producto: MgO filling machine
Número: FHFM-12
The main technical parameters:
Gas station: 12 PCS (6 o 8 PCS optional)
Maximum diameter of filler pipe: 25 milímetros
Maximum filling length: 6000 milímetros
Minimum filling length: 150 milímetros
Tap density: greater than 2.35g / cm3
Fuente de energía: 380W 220V 500W
fuente de aire: 0.6MPa clean compressed air
Mgo filling machine:

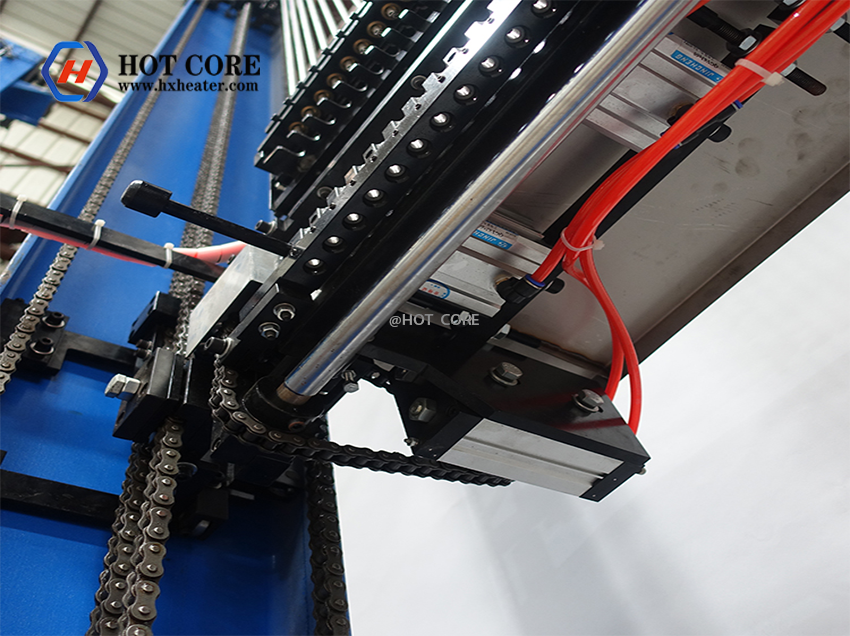

Mgo filling machine is a double-layer direction chain drive filling machine. The mandrel is relatively fixed. Insert one of the two transmission mechanisms into the catheter, and the other drives the catheter mechanism to descend quickly and slowly rise. This design structure does not limit the filling length.
There is a material storage device in the machine, which can hold 100Kg magnesium powder each time.
After the material storage equipment is full, the magnesium powder is automatically added to the butcher.
The operation of MgO filling machine is very easy because the operating station is located in the center of the machine. This is the ideal filling machine for very long parts.
