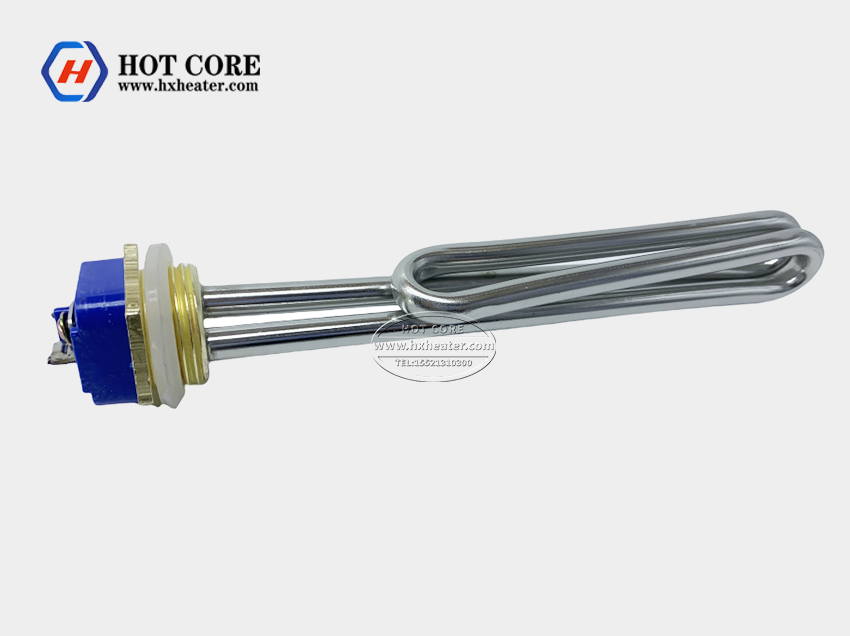

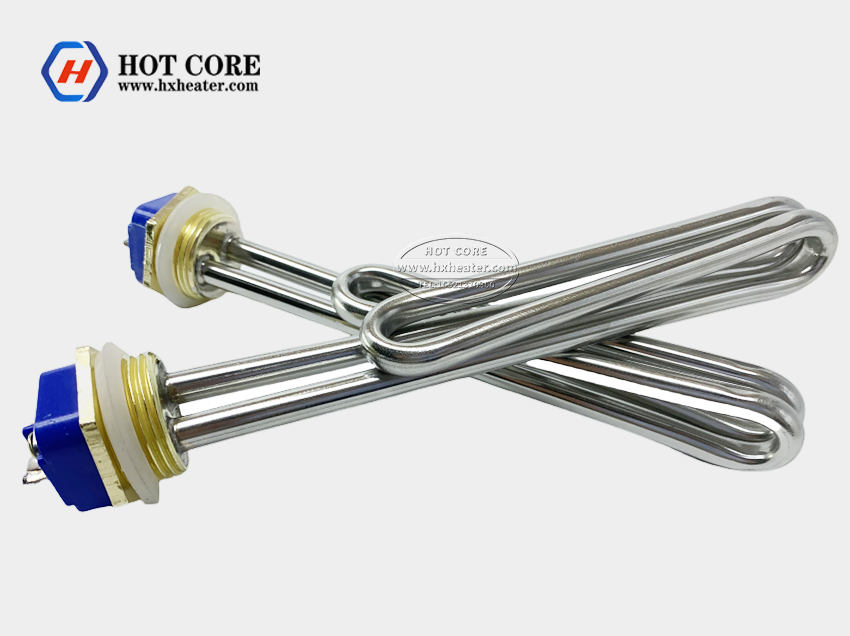

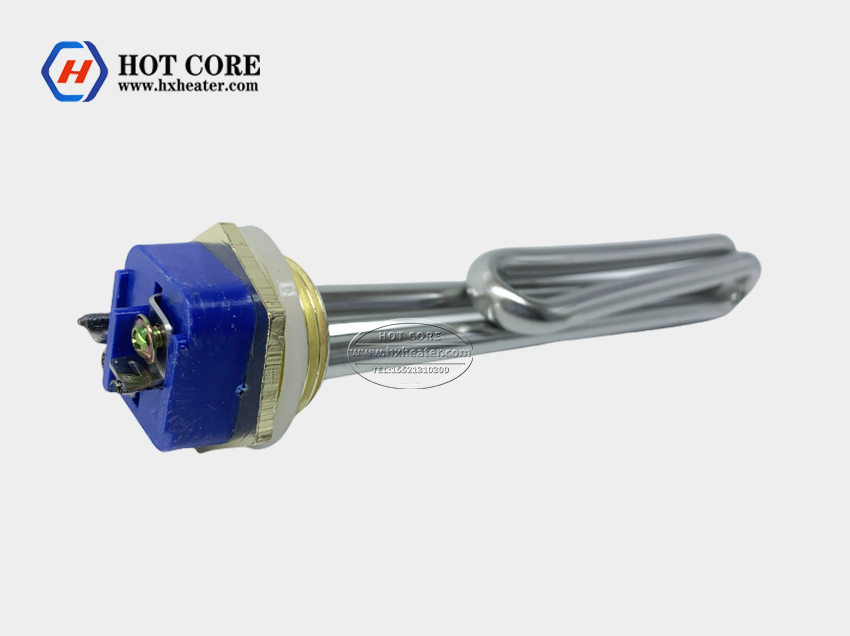

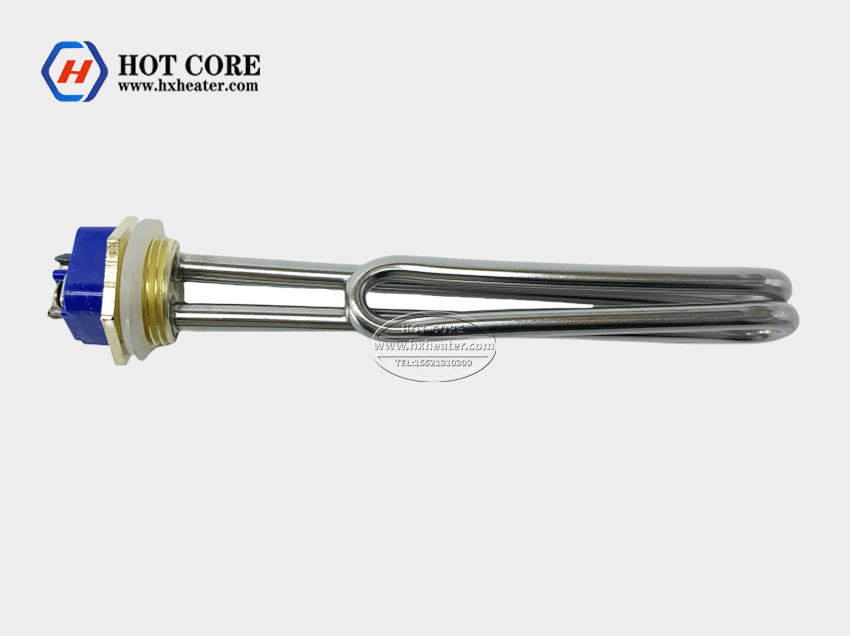

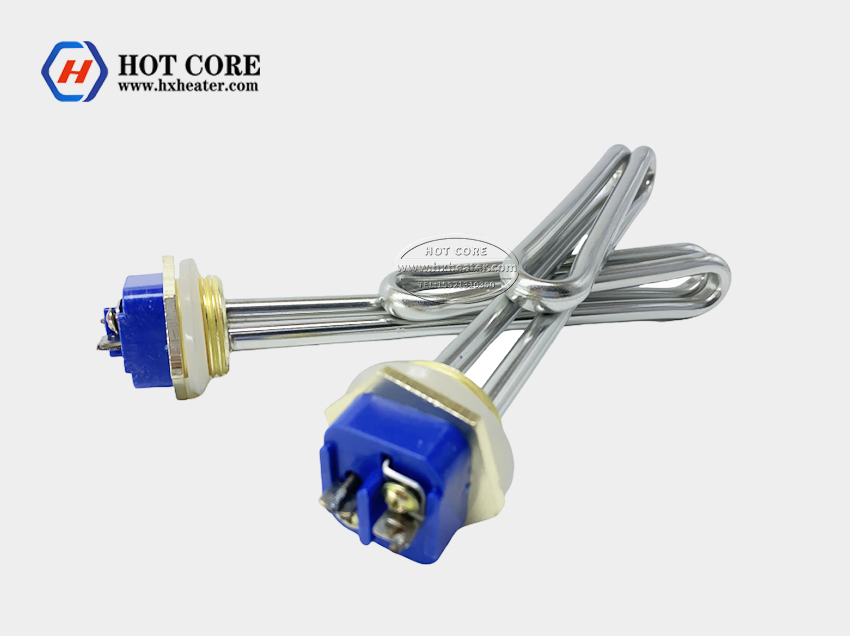

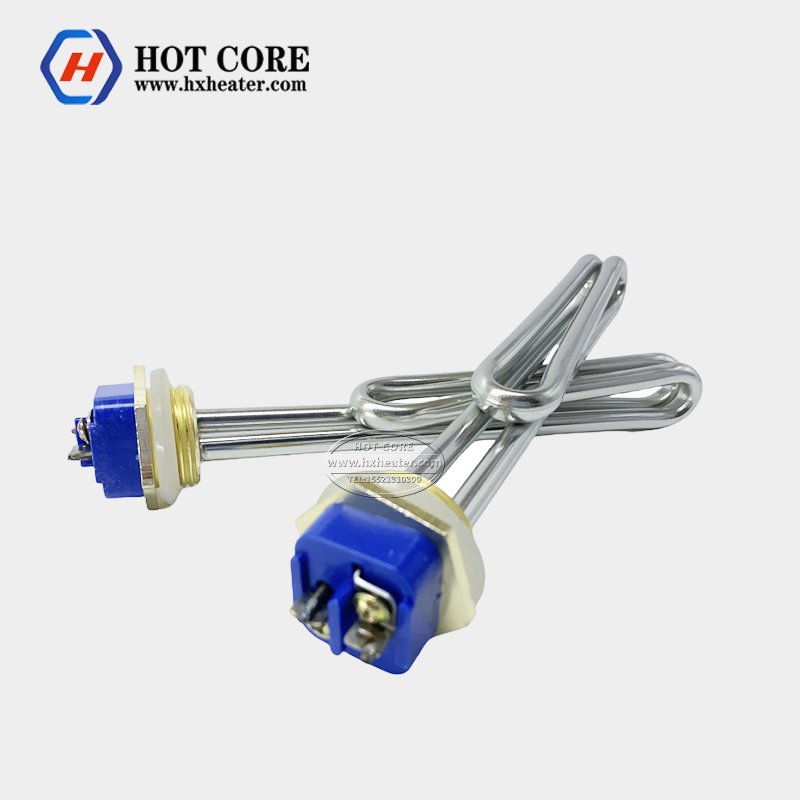

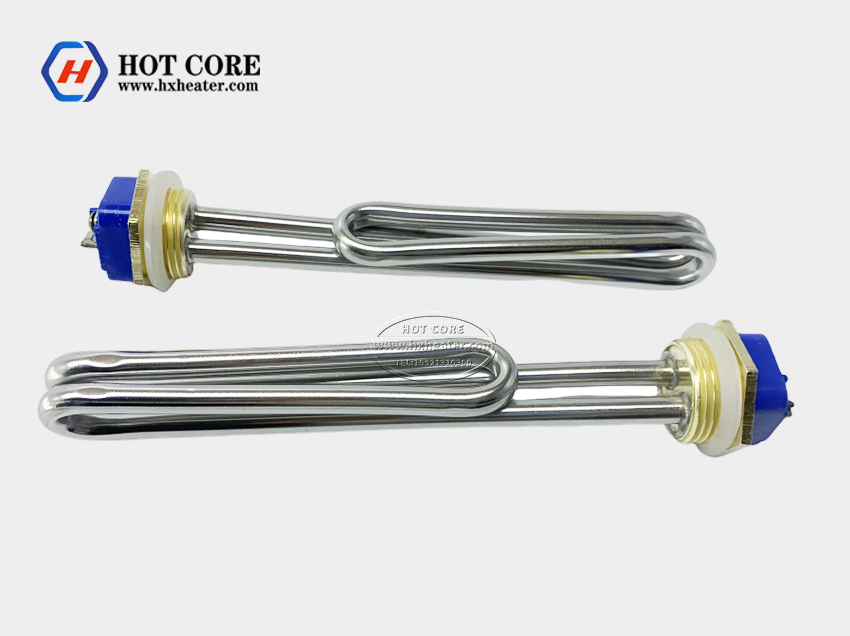

Incoloy 840 electric immersion heater element
Incoloy 840 electric immersion heater element for heating water are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling.
Sizes of screw plug immersion heaters are available with 1”, 1-1/4", 1-1/2", 2", 2-1/2″ pipe threads.
A wide selection of screw plug sizes, clasificaciones de kilovatios, voltajes, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
Incoloy 840 electric immersion heater Specifications:
PERFORMANCE CAPABILITIES
| Material de la funda | SUS304.321.316,Incoloy800.840,Titanium | ||||||||
| Resistance wire | NiCr2080 | ||||||||
| Maximum temperature | 1400 °F ( 760°C ) on alloy 800 vaina | ||||||||
| Maximum Watt density | 11W/cm2 | ||||||||
| Maximum voltage | 600VAC | ||||||||
| Wattage tolerances | +5 percent, -10 percent | ||||||||
| Resistance tolerance | -10 percent, +5 percent | ||||||||
| Minimum diameter | 6milímetros | ||||||||
| Sheath Dia. ±0.15mm | 6.4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 |
| Sheath Length Max. (milímetros) | 6000 | 6000 | 6500 | 6500 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Tensión máxima | 250 | 277 | 480 | 550 | 550 | 550 | 550 | 550 | 550 |
| Tolerancia a la potencia | +5% -10% | ||||||||
| Resistance Tolerance | +10% -5% | ||||||||
Application of electric immersion heaters:
1. Heating heat transfer fluids
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Equipos de procesamiento de alimentos.
7. Cleaning and rinsing equipment.
8. Beverage equipment
9.Brewing&Distillery
