Bobina calentadora de inmersión
Operating principle of coil heater

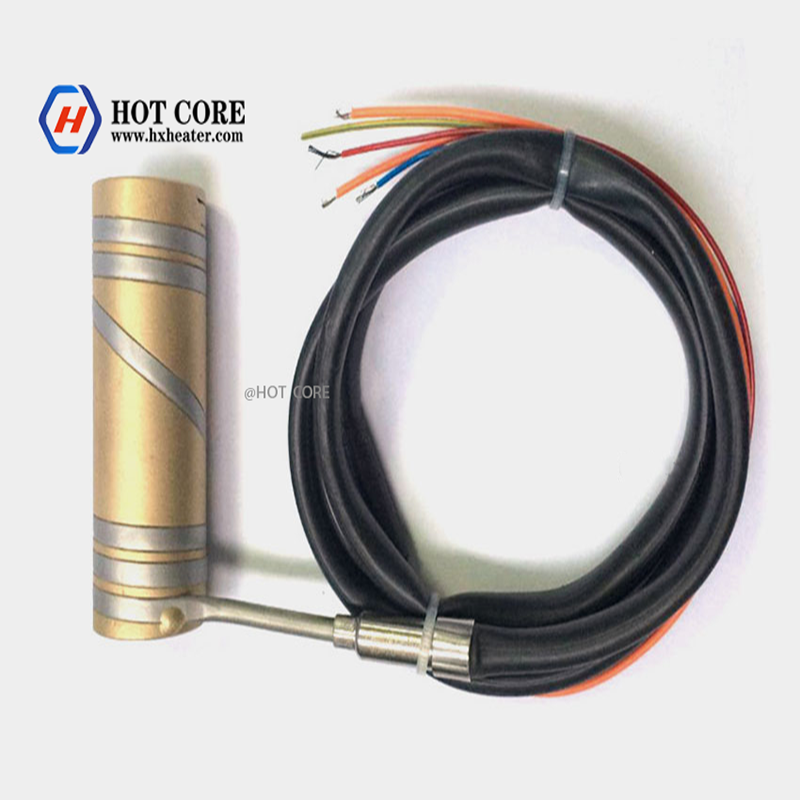

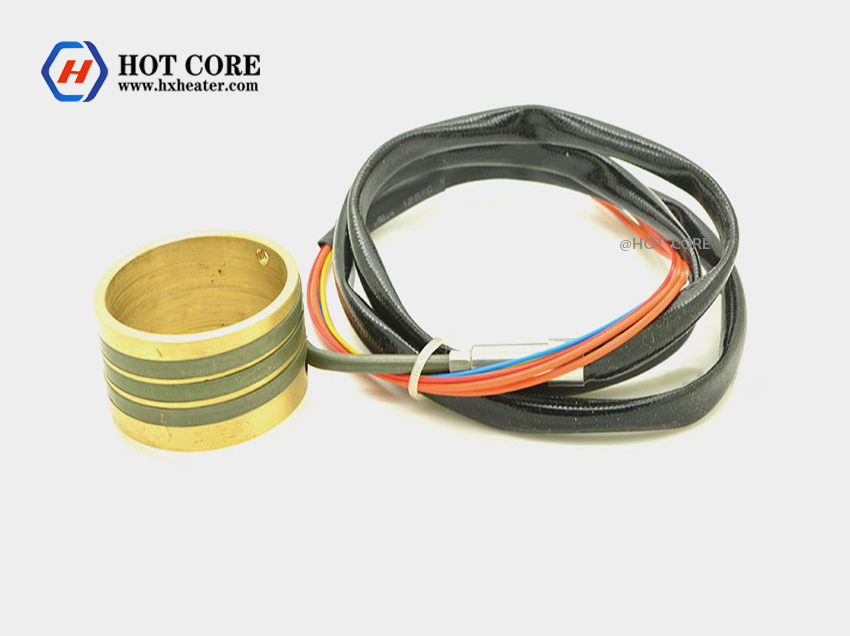

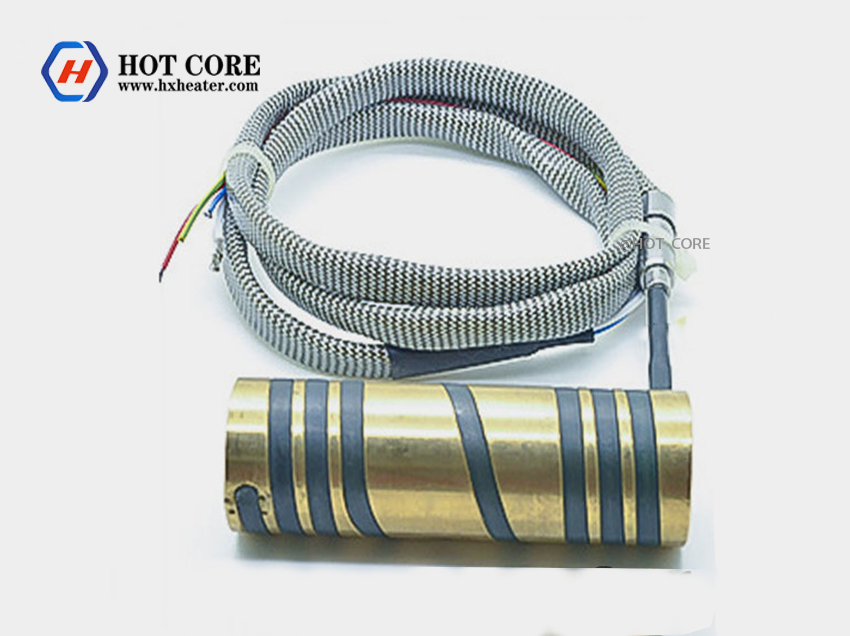

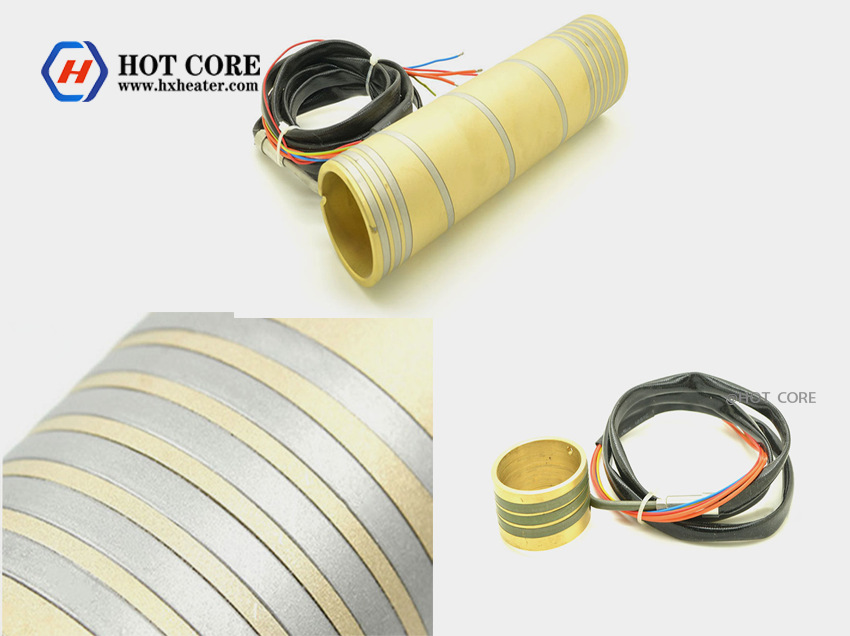

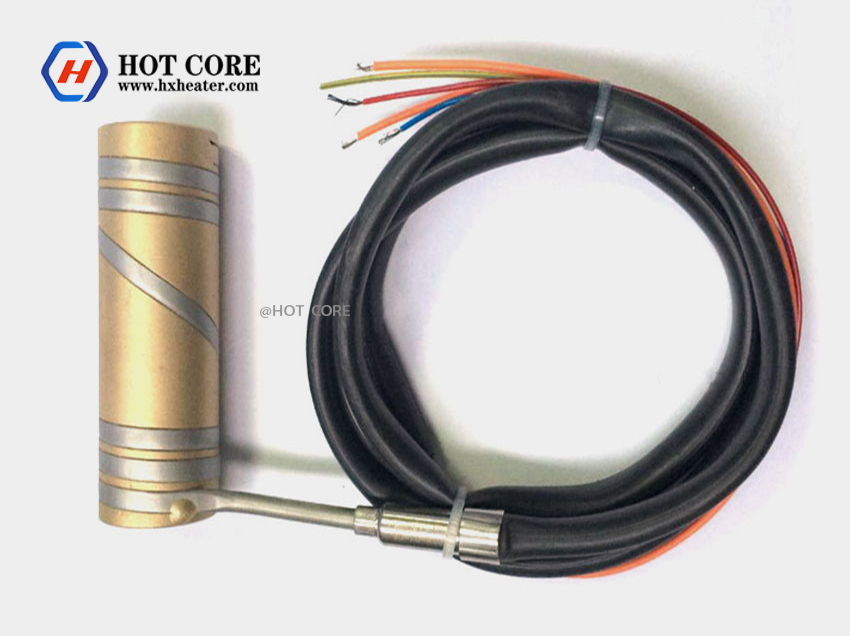

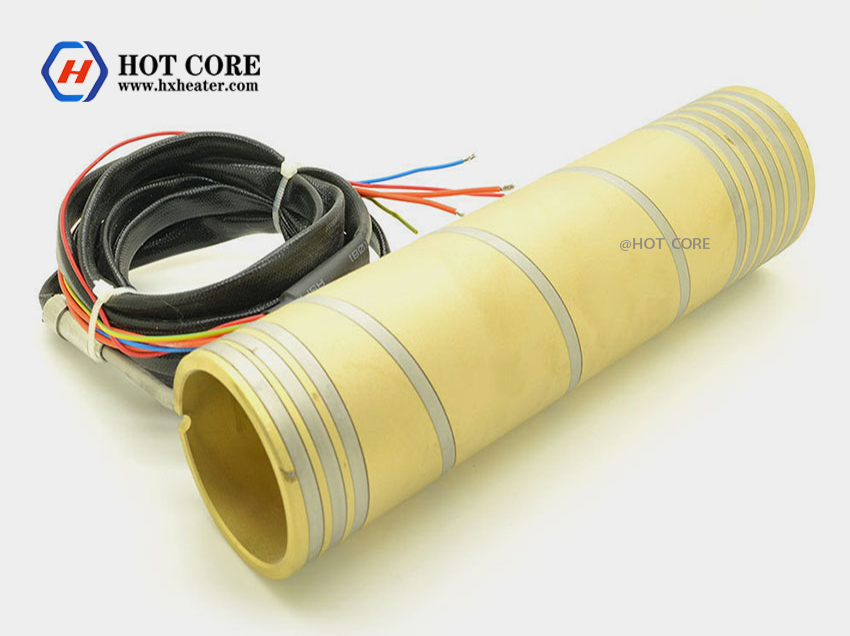

immersion heater coil
The square coil heater is designed to meet standards, with accurate installation and profile design to optimize the performance of the nozzle and other supporting components.They accommodate type “j” o “k” thermocouples that can be placed inside the top or middle of the heater.
immersion heater coil
They can also be made with contour or distributed watt configurations.
1.Pitch circle area resistance: Φ 1.6;Φ 1.8;Φ 2.0;Φ 3.0;Φ 3.3;Φ 3.8;Φ 5.0;
2.Rectangular resistor area :1.5*2.1;1.7 * 3.5;2 * 4.2;2.2 * 4.2;2.7 * 4.5;4.2 * 6.5;
3.Square cross section area :3*3;3.5 * 3.5;4 * 4;
4.Material de la funda :SUS304, SUS321
5.Internal resistance wire :Cr20Ni80
6.Maximum surface temperature :750℃
7.Input power :12V to 400V
8.Tolerance :+5% a -10%
9.Insulation resistance of dc 1000 v: 100 m Ω or higher
10.Corriente de fuga :≤ 0.5ma
11.Inner diameter :8 mm ~ 100 milímetros
12.Par termoeléctrico :k, j, mi
13.Lead material: fibra de vidrio, kevlar fiber, telfon fiber, caucho de silicona, metal woven, steel wire.Heating element features of industrial coil heater:
1.Imported high purity MGO, excellent thermal conductivity, electrical performance;
2.Suitable for injection mould with high productivity and high requirement;
3.Adopt precision processing equipment and advanced manufacturing technology.
All our hot runner heaters adopt 1050C heat treatment, suitable for forming and bending of various molds.
