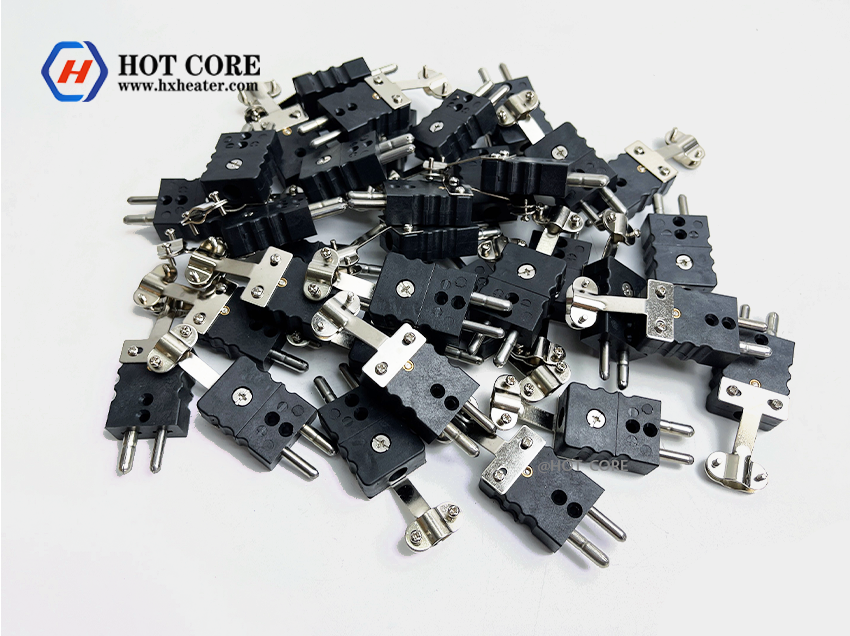

Conector miniatura de alta calidad Conector de termopar tipo K J N T B
| Accessories for connectors | ||
 |
Tube Adapter (for Standard Connectors)
Solicitud : Can be used to mount the connector on mineral insulated cable or a tube type thermocouple. Can be used several times if not overtightened. Construcción : Nickel plated. Part NO : Dim A (milímetros) A-20.154-1 1.7 A-20.154-2 3.3 A-20.154-3 4.9 A-20.154-4 6.5″ |
|
 |
Wire Clamp Bracket (for Standard Connectors)
|
|
 |
Wire Clamp Bracket (for Miniature Connectors)
|
|
 |
Crimp Insert
|
|
| Part No. | Dim A (milímetros) | Dim B (milímetros) |
| A-20.024-1 | 1.1 | 2.4 |
| A-20.024-2 | 1.6 | 2.4 |
| A-20.024-3 | 1.7 | 2.4 |
| A-20.024-4 | 2.1 | 3.2 |
| A-20.024-5 | 2.4 | 3.2 |
| A-20.024-6 | 3.1 | 4.5 |
| A-20.024-7 | 3.3 | 4.5 |
 |
Crimp Insert
Solicitud : Designed for soldering or crimping on mineral insulated cable or crimping on insulated wire. Construcción : ◎Brass machined insert with 0.1 milímetros tolerance on the cable OD. ◎Brass with Nickel Plated |
|
| Part No. | Dim A (milímetros) | Dim B (milímetros) |
| A-20.025-2 | 1.6 | 2.4 |
| A-20.025-4 | 2.1 | 3.2 |
| A-20.025-5 | 2.4 | 3.2 |
| A-20.025-6 | 3.1 | 4.3 |
| A-20.025-7 | 3.3 | 4.3 |
| A-20.025-8 | 4.6 | 6.0 |
| A-20.025-10 | 6.1 | 7.9 |
| A-20.025-11 | 6.5 | 7.9 |
| Connector OMEGA New Products | ||||
| Photo | Ω | Tipo | k | |
 |
Color | YELLOW | ||
| Code | Male | OHB-TTS-15-M | ||
| Female | OHB-TTS-15-F | |||
HOT CORE has been focused on the production of omega quality miniature connector thermocouple since 1985, which is well-known as one of the leading manufacturers and suppliers of omega quality miniature connector thermocouple. En los últimos años, Teníamos una sólida reputación por la alta calidad., Rendimiento confiable y gran durabilidad de nuestros productos.. ¿Deberías estar interesado?, no dude en ponerse en contacto con nuestra fábrica.
Etiquetas calientes: High Quality Miniature Connector K J N T B Type Thermocouple manufacturers, proveedores, fábrica
