Hot core Heater Face Lathe
Descripción
Parámetros técnicos

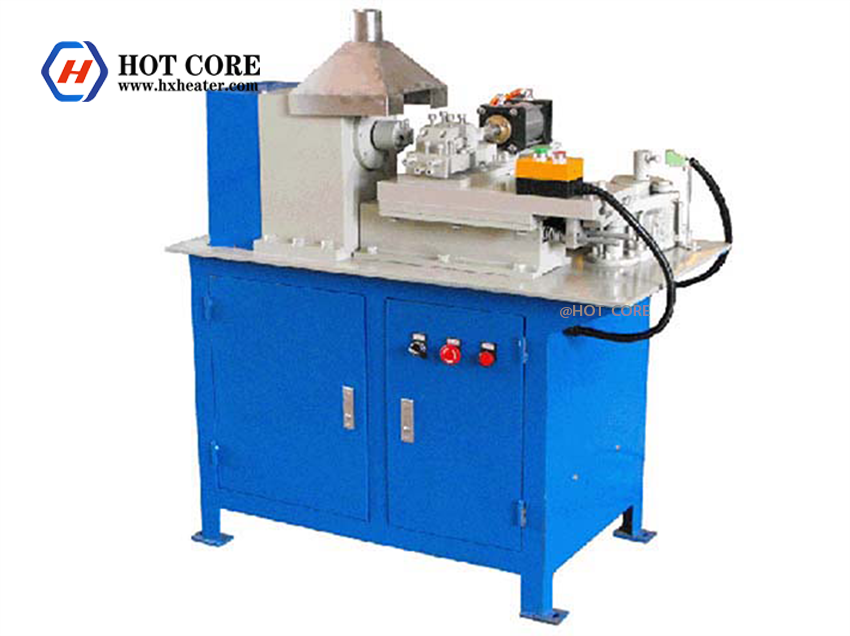

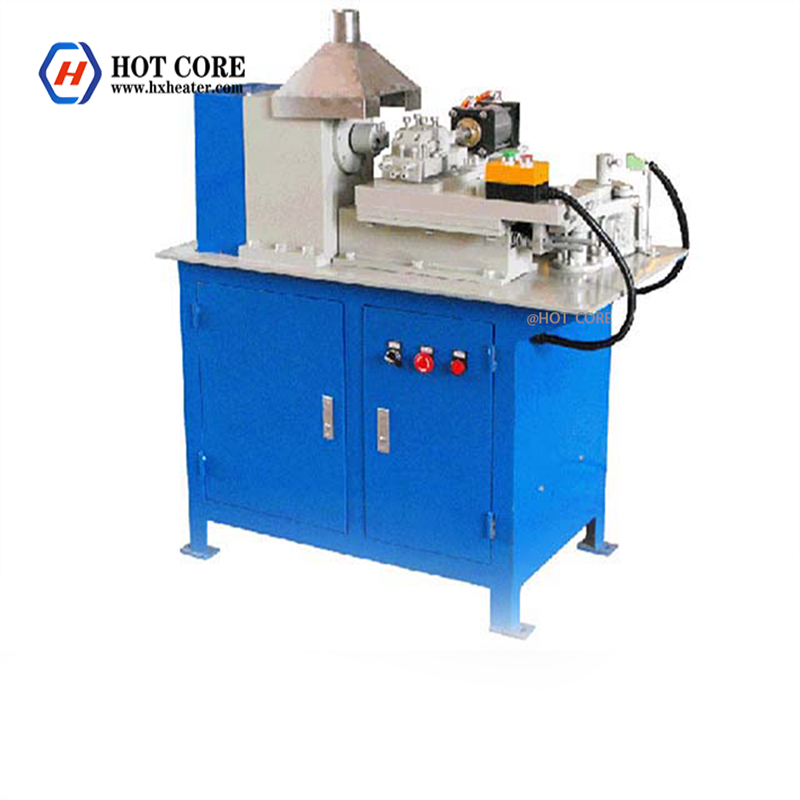

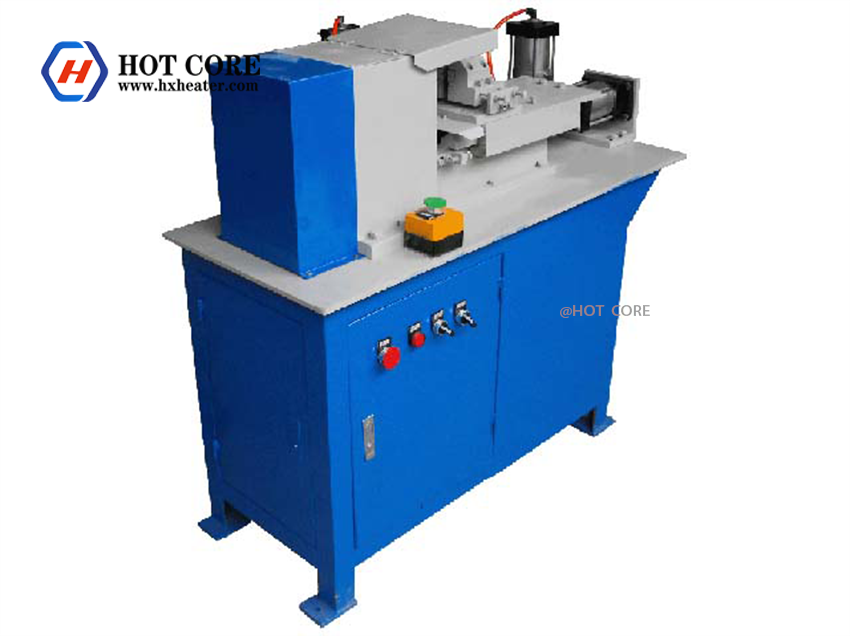

A semi-automatic face lathe is a type of Heater Face Lathe. Many advantages of this product are hydraulic propulsion. The advancing speed can be selected, the efficiency is high, the rotation time during processing reaches 3-4s, and the output per hour exceeds 400pcs.
Face Lathe product: semi-automatic face lathe
Modelo: G30A, CG30B. (Hot CG30B)
Número: FHCG30
technical parameter:
Spindle speed: 900rpm, 2100rpm
Maximum turning stroke: 30milímetros
Roller diameter range: Φ5–Φ16mm (se puede personalizar)
Fuente de energía: 380V 50HZ 0.75KW
fuente de aire: 0.6MPA, can clean compressed air
Roll: 1050 * 600 * 1000milímetros
CG30 semi-automatic face lathe:
1) CG30A is driven by cam;
2) CG30B adopts hydraulic propulsion.
Ventajas: adjustable advancing speed,
The efficiency is very high, the rotation time during processing reaches 3-4s, and the output per hour exceeds 400pcs.
The operating system rotating parts of Heater Face Lathe is driven by a spindle and rotates at high speed. The tube clamped by the cylinder will automatically return after rotating to the preset length. Then, the clamping structure automatically opens. One end of the electric heating tube has been shelled and rotated by the lathe. After adjustment, the turning stroke is relatively fixed. The other end uses a cage device for similar treatment.
