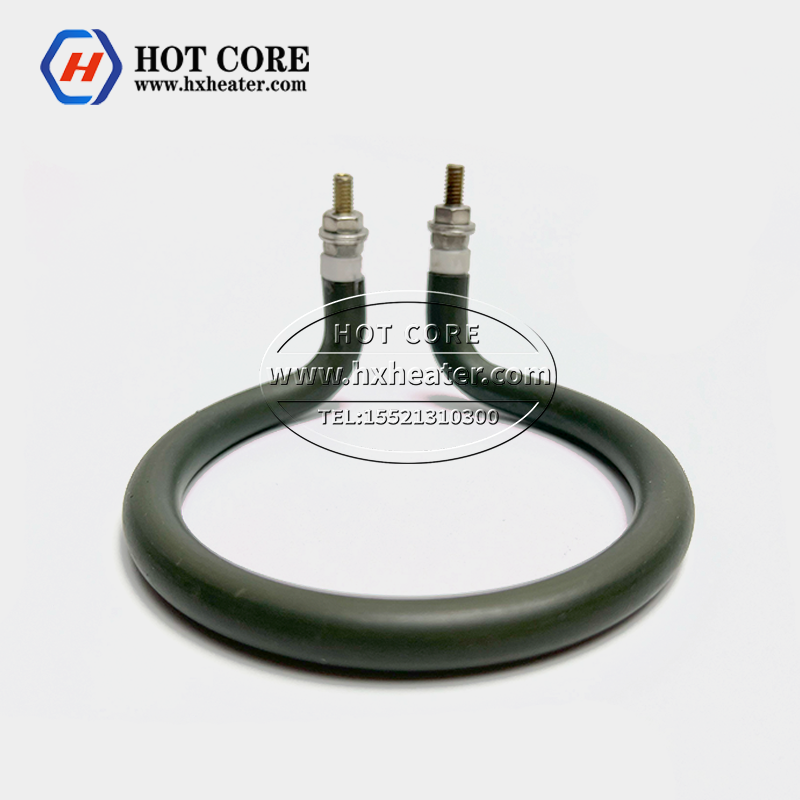

Calentador de tubo flexible
Descripción del Producto:
The HOT CORE brand tubular heating elements are suitable for almost any heating appliance. They are easy to form while offering the highest mechanical stability and electrical properties.
Although tubular heating elements are technically quite mature and versatile, there are a variety of new and innovative solutions for many applications.
Screw-in tube heating elements are standardized and can be used for liquids such as water.
Los elementos calefactores tubulares son fáciles de instalar., controlar y mantener, and unique designs can be tailored to your requirements. For aggressive environments, titanium or tubular heating elements with additional teflon bushings can be used.
Características:
Withstand voltage test 1500V/S min under cold condition
Minimum insulation resistance 20MΩ
Maximum leakage current 0.75ma
Tolerancia de poder +5%,-10%
Voltage 110V-440V
Diameters range from 1 mm to 40 milímetros
Heating resistance wire 0Cr25Al5, Cr20Ni80 or according to customer requirements
Air tube heater wattage ≥2w-4w/cm2
Water tube heater wattage ≥6w-10w/cm2
Die and finned tube heaters ≥8W-12w/cm2
Solicitud
Tubular heater application:
Inmersión líquida
Moldes de plástico
Matrices
Etiquetado
Equipo médico
Marido
Equipo de embalaje
Estampado en caliente
Caza de focas
Moldeo por inyección
HOT CORE has been focused on the production of rosh approval flexible tubular heater since 1985, which is well-known as one of the leading manufacturers and suppliers of rosh approval flexible tubular heater. En los últimos años, Teníamos una sólida reputación por la alta calidad., Rendimiento confiable y gran durabilidad de nuestros productos.. ¿Deberías estar interesado?, please feel free to contact our factory.Hot Tags: rosh approval flexible tubular heater manufacturers, proveedores, fábrica
