Bloque de terminales de cerámica para cabezal de termopar
Descripción del Producto
Solicitud
Calidad

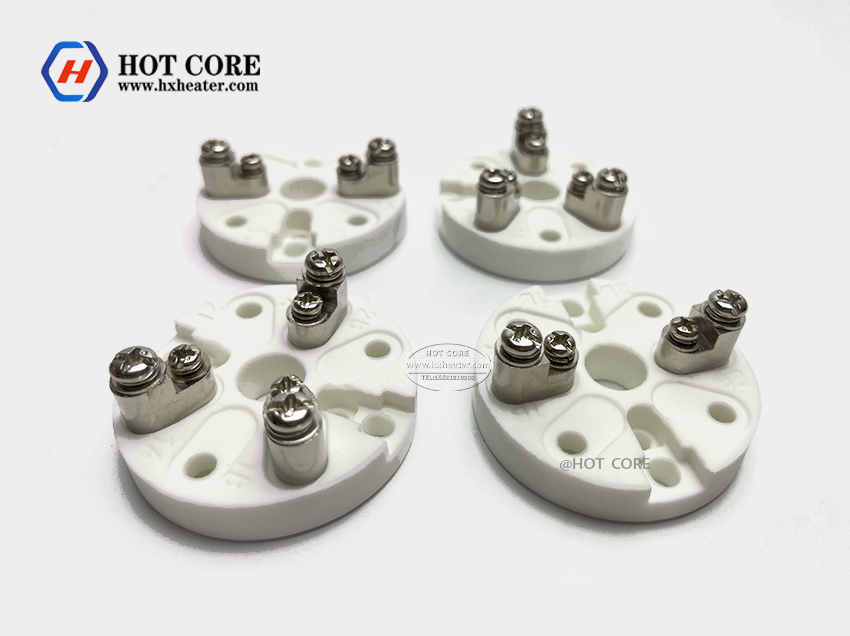

Ceramic Terminal Block for Thermocouple Head
Terminal block means terminating the process sensor (par termoeléctrico, RTD or other transducers or sensors) inside the thermocouple head. Jaye industry supply KNE, KSE, kd, MAA & NAA series terminal blocks in ceramic and bakelite in 2 polos, 3 polos, 4 poles and 6 poles types. The ceramic terminal block made by Jaye industry have the advantage of high mechanical strength, resistencia a altas temperaturas, high chemical stability, and long life service time.
Presupuesto:
** Across fixing holes 27mm
** 45%Al2O3 ceramic block
** Nickel plated brass poles
** Stainless steel screws.
bloque de terminales: cerámico, baquelita
Modelos disponibles: RODILLA, KSE, KB, DANA, NAA, TL, TS
You can choose 2, 3, 4, 5, 6 terminales

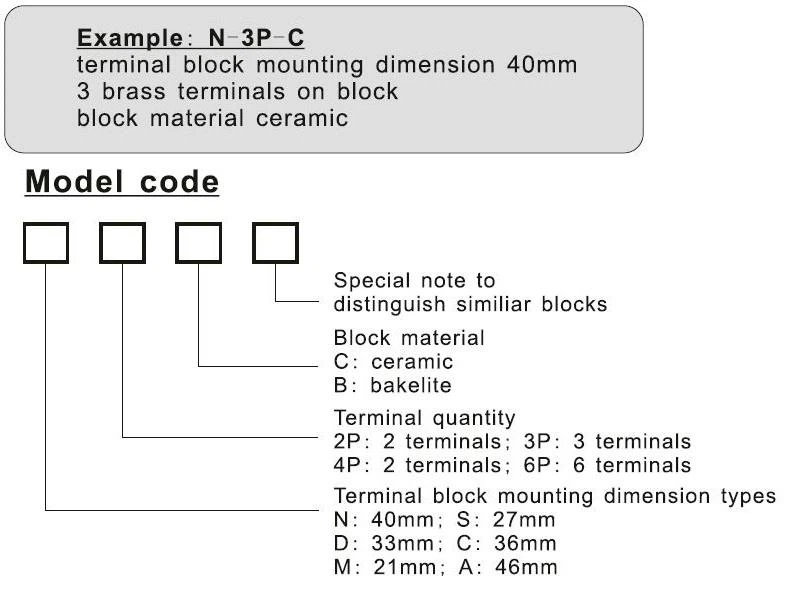

More types of terminal block can be offered, according the request below;
1)Terminal block can be Ceramic or Bakelite material , Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3, Bakelite material is also available, black color
2) Mounting holes distance can be different: 40milímetros, 36milímetros, 33milímetros, etc..
3) Material de terminales:nickel coated brass
4) Material del tornillo: acero inoxidable, nickel coated iron
Bloques de terminales
1) Modelos disponibles: KSB,KSE,KSY,
2) Cuerpo cerámico
3) Mounting holes distance: 27milímetros
4)Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3
5)Bakelite material is also available, black color
6)Material de terminales:nickel coated brass
7)Material del tornillo: acero inoxidable, nickel coated iron

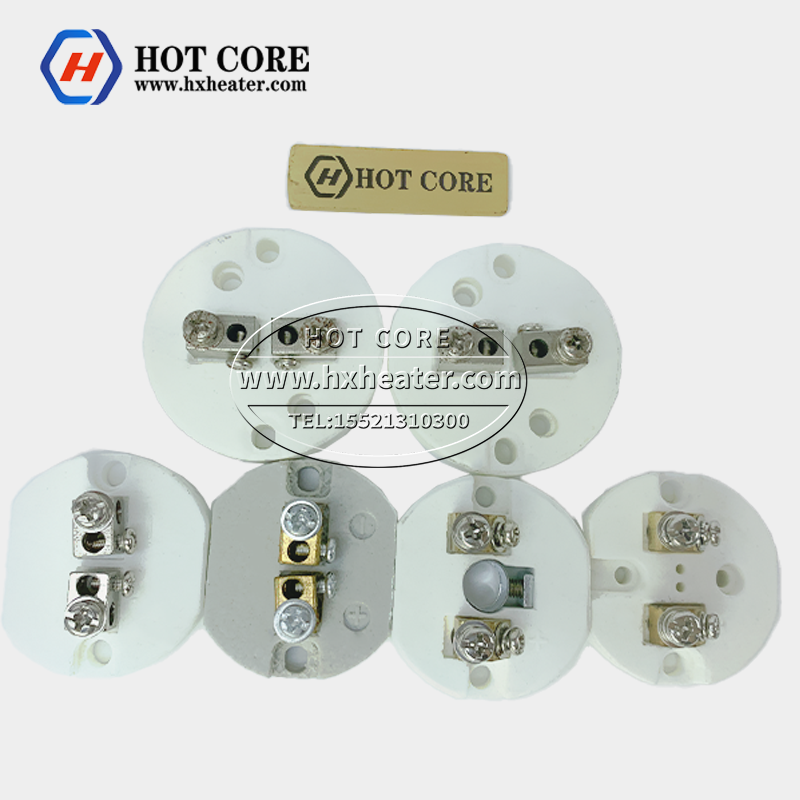

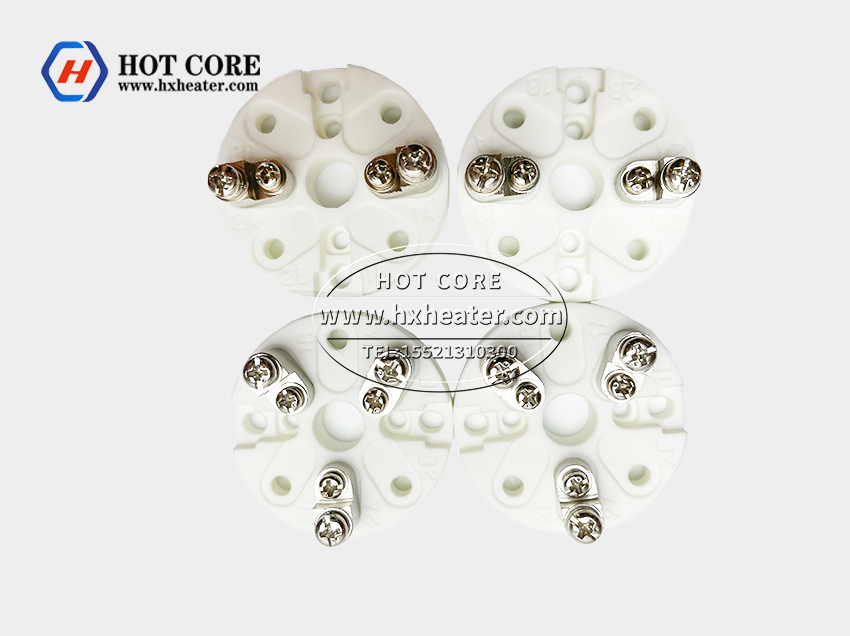

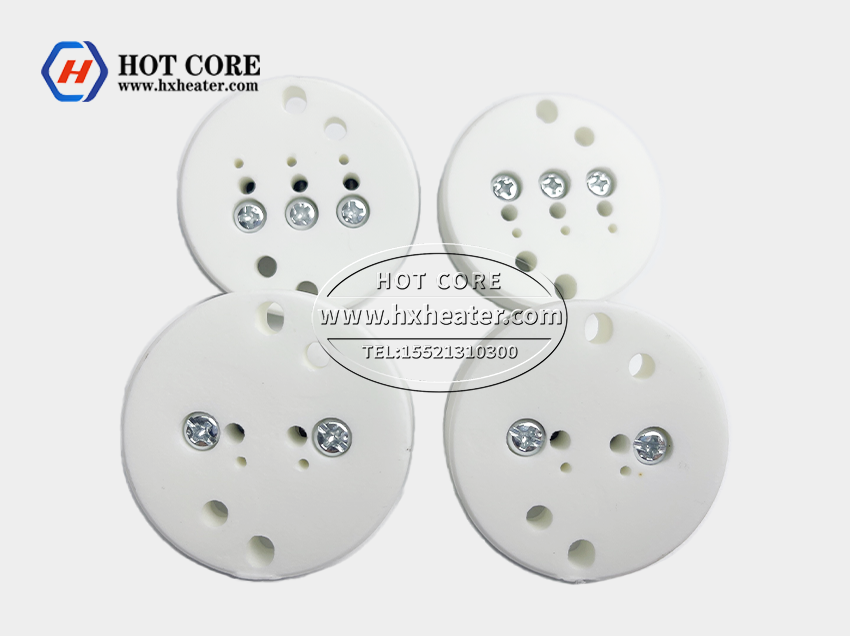

Types of Terminal Blocks:
