Descripción del Producto

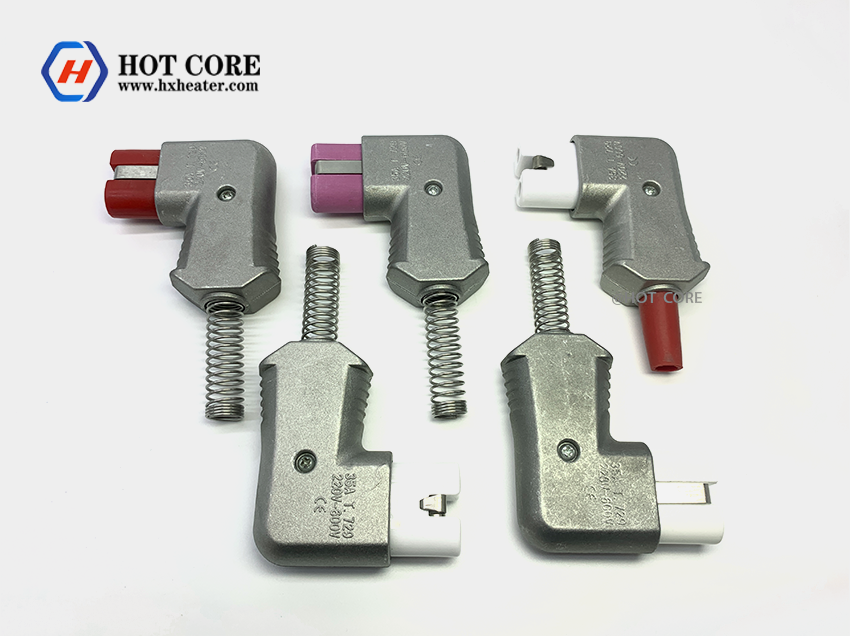

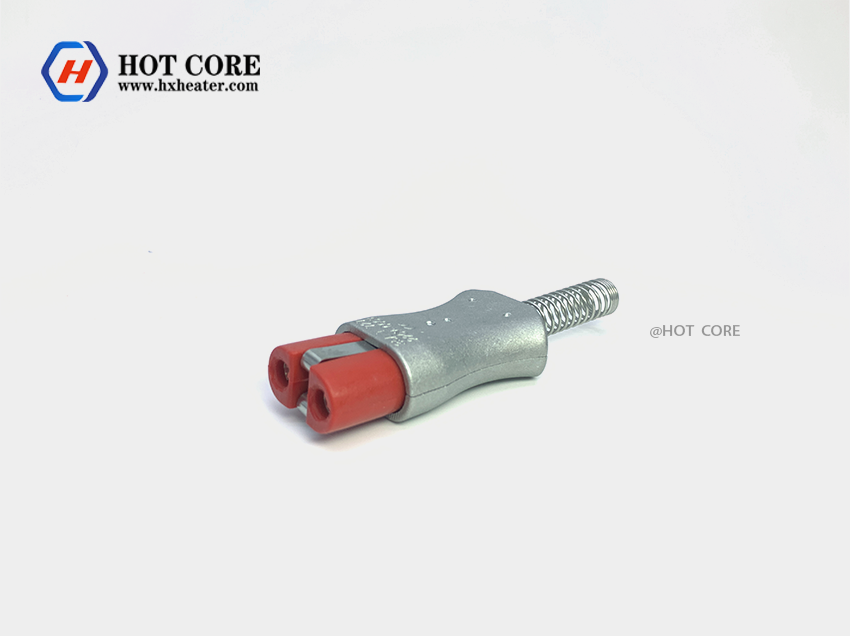

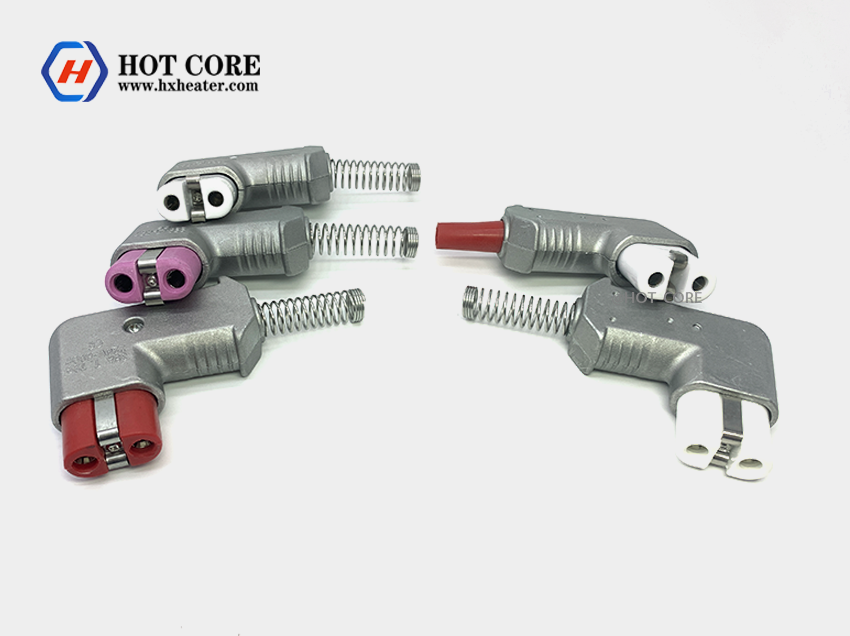

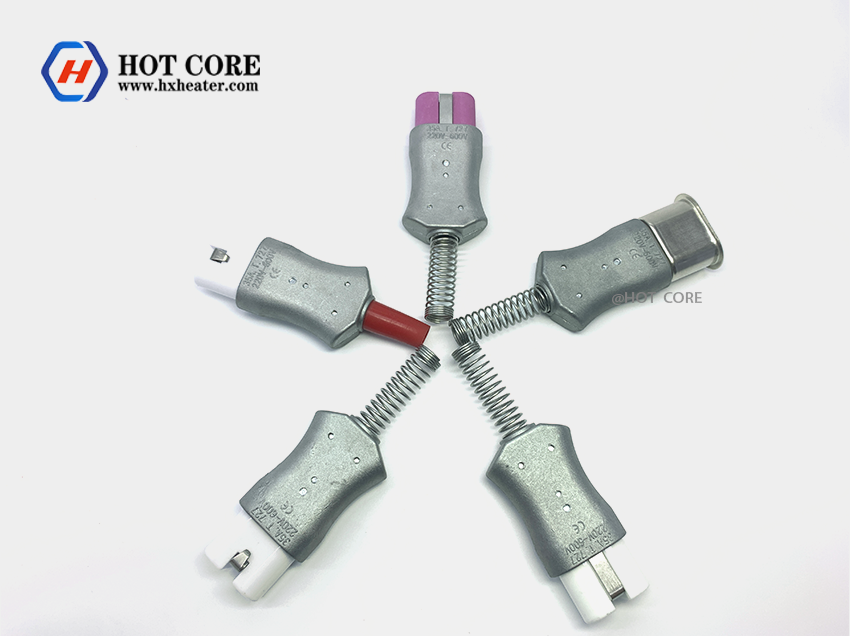

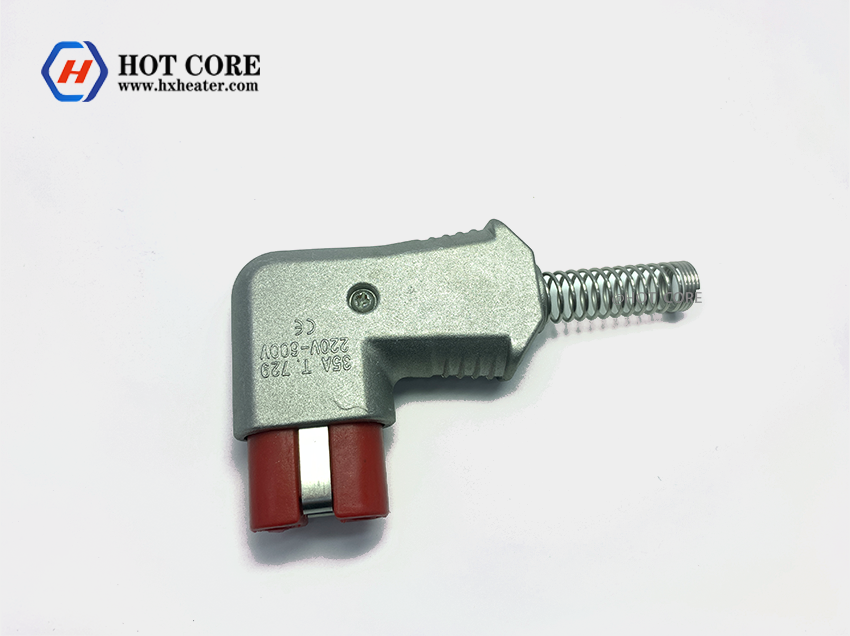

Enchufe calefactor de alta temperatura con caja de aluminio
Aluminum Case high temperature heater plug is the plug with the cooper core and ceramic, outside is made of metal aluminum protection shell. The Aluminum shell high temperature plug made by Jaye industry with Special heat-resisitance, high strength aluminum alloy shell is made of import foreign equipment. Heat-resistance, under 500°C, with voltageas 200V~600V, larga vida útil, diameter of hole as 4mm, 5mm and 6mm.
The High temperature plugs that made by HOT CORE industry own the advantage of high strength, resistencia a altas temperaturas, large current, beautiful and precise process appearance and long life time.
Material Silicone, aluminio, hardware
Voltage 220v – 600v
Ampere 3-35A
Temperature resist ≤500℃
Plug core Diameter 6mm, Copper material with silver-plated
Main feature.
1) 220-600v 35A ceramic plug
2) can be matched with our socket
3) meet CE and ROHS standards
4) fast delviery,sample can be offered
5) silicone plug and bakelite plug are avaiable、

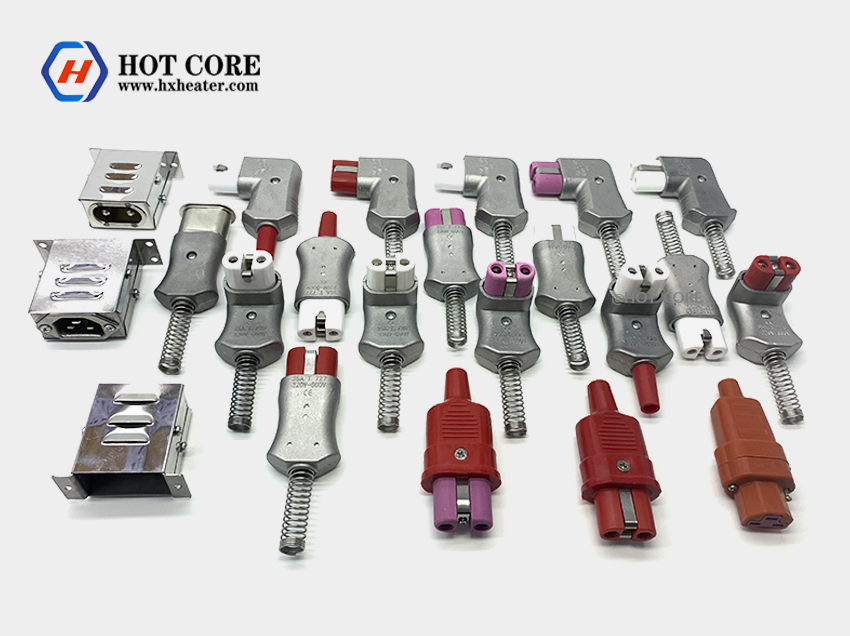

Models of our High temperature plugs:
Model Shape Material
T727-1 straight ceramic,aluminio
T728-3 90°angle ceramic,aluminio
T727D straight alumimum,silicona
T728D 90°angle alumimum,silicona
T729D 90°angle alumimum,silicona
GJ-6 straight silicone
GJW-6 90°angle silicone
QGJ-11 straight silicone
QGJW-12 90°angle silicone
Order Guide:
1- Which type of the high temperature plugs need
2- What is the hole diameter
3- What is the Voltage
4- Order quantity
