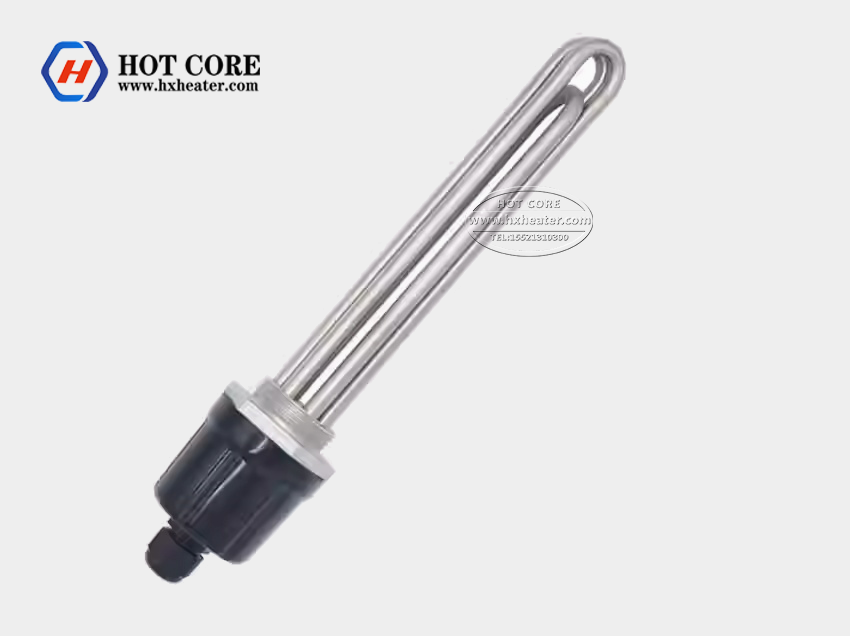

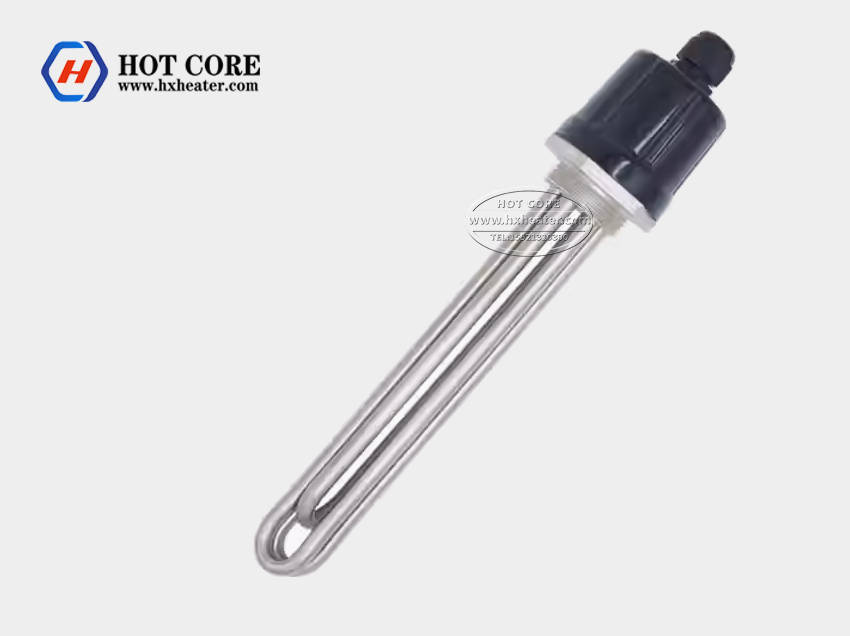

Scrersion Heater For Solar Water Heaterew plug immersion heater for solar water heater
Screw plug immersion heater are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling.

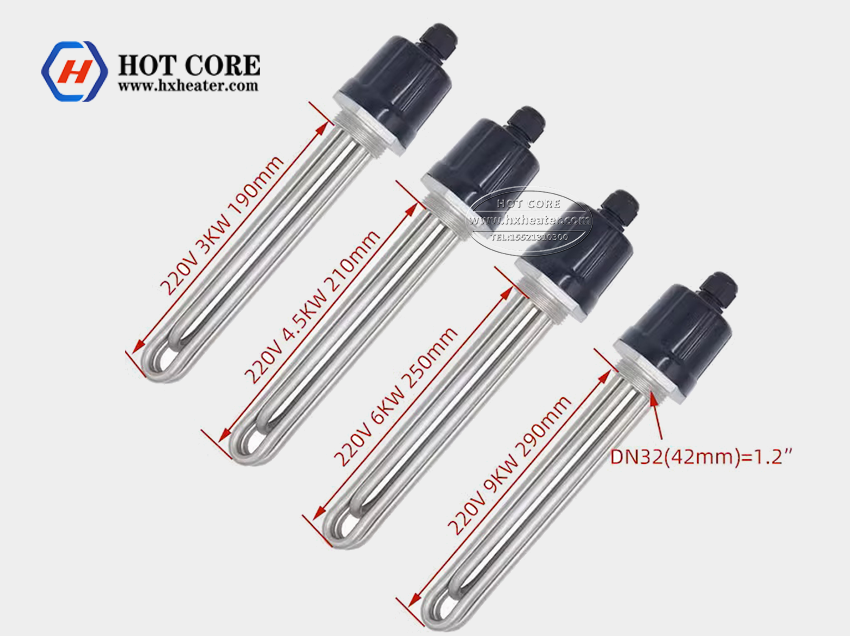

Sizes of screw plug heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2″ pipe threads.
A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
1. Tube diameter: Φ8mm-Φ16mm
2. Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
3. Insulation Material: أهداب الشوق
4. Conductor Material: Nichrome Resistance Wire
5. Wattage Density: High/Middle/Low (5-25w/cm2)
6. Lead Connection Option: Threaded Stud Terminal or Lead Wire
| Sheath Dia. ±0.15mm | 6.4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 |
| Sheath Length Max. (مم) | 6000 | 6000 | 6500 | 6500 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Maximum Voltage | 250 | 277 | 480 | 550 | 550 | 550 | 550 | 550 | 550 |
| Wattage Tolerance | +5% -10% | ||||||||
| Resistance Tolerance | +10% -5% | ||||||||
Application of immersion water heaters:
Livestock water tank deicer. For keeping dog, cat, chicken, and domestic animals’ water from freezing.
•Standard water heater element replacement for on or off grid applications
•Water preheating
•Campers, motorhomes, and RVs
•Emergency hot water
•Portable commercial, industrial machines and equipment
•Runs off your car battery for portable hot water anywhere
•Direct wind and solar applications
•Cement mixing trucks
•Use for DIY solar batch water heaters
•For heating motor oil, vegetable oil, or most any other oils or liquids
